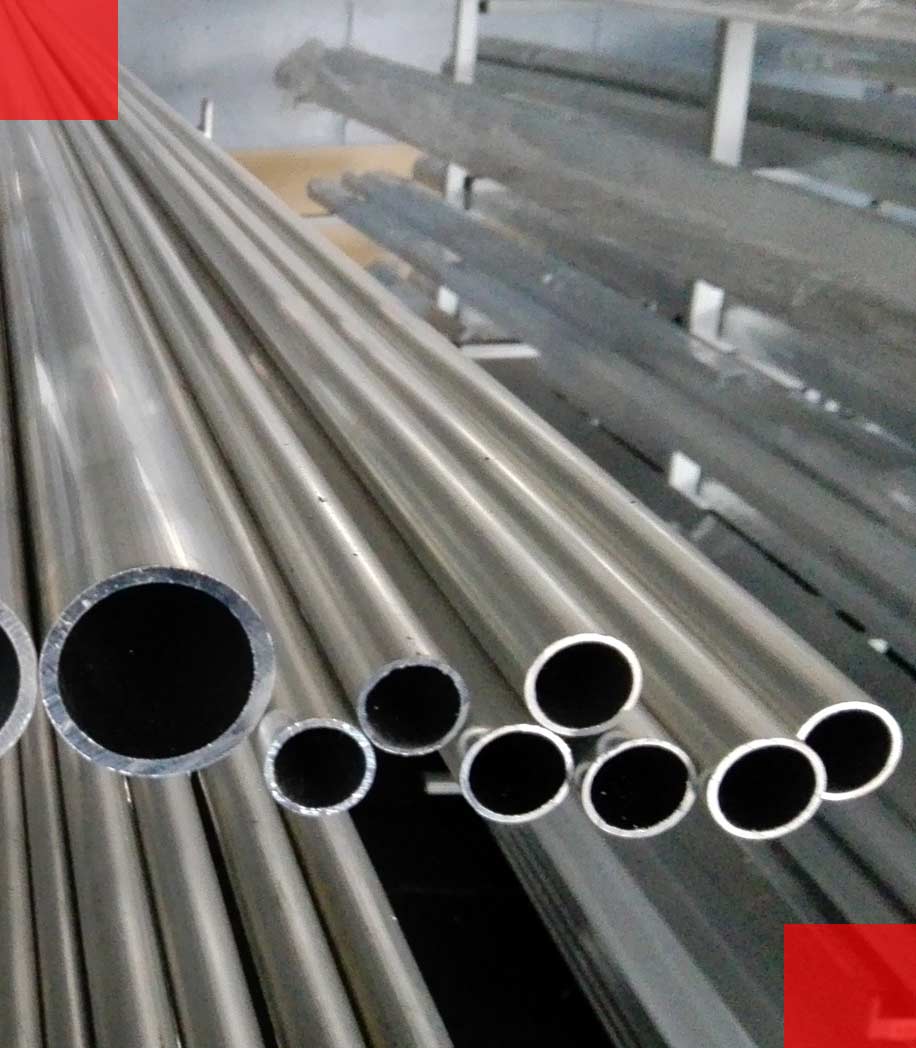

Katariya Steel are a leading supplier and manufacturer of Tantalum Tube to our respected clients.

In the market, the Tantalum tube has gained too much popularity because of various good attributes. The product in the reputed manufacturing industry is manufactured under the strict guidance of a professional team that is having years of working experience. To add excellence in quality, the product is created with top-notch quality raw materials and the newest technology and tools that correspond with product quality requirements. The sector provides items to its customers with diverse specifications in order to meet all demands. The product is supplied to the consumer at a cheap price, allowing them to shop in quantity.

Tantalum Tube has many desirable attributes. It can be used in a variety of rough conditions. It has a high tensile strength of 131 ksi (min) with good ductility and sturdiness. The metal has good dimensional accuracy and matches the size and specifications provided. Tantalum is a highly corrosive metal that can withstand a wide variety of acid concentrations and temperatures. It has high resistance to stress cracking, crevices, and pitting.

Tantalum Tubes Manufacturers, Tantalum Capillary Tube, Tantalum Tube Suppliers, Tantalum Tubes, UNS R05255 Tubes, Tantalum R05200 Tubes, ASTM B521 Tantalum Tubes, Ta Alloy Tube, ASME SB521 Tantalum R05240 Tubes, Tantalum Tubes Stockist in Mumbai, India.

The Tantalum Tube melting point is 5,463°F or 2,996°C, which is the fourth highest melting point among all the metals. Due to its high ductility, it has great mechanical properties. It makes the metal suitable for processes like bending, stamping and pressing. When other metals are combined with tantalum, it creates an alloy with improved strength with a higher melting point.

Tantalum Tubes produced, go through many tests, aimed at supplying quality products. The testing includes:

Hardness test.
PMI/IGC test.
Flattening/flaring test.
Chemical/mechanical test.
Macro/micro test.
Radiography test.
Hydrostatic test.

Clients can order these components in unique sizes and forms from Katariya Steel Distributors. We also provide them at the most competitive prices.

Tantalum Seamless Tubes Stockholder, Tantalum R05400 Welded Tube, Tantalum ERW Tubes, Tantalum Tubes Exporter, Tantalum Custom Tubing, Tantalum R05252 Tubes, R05240 Tantalum Tubing, Tantalum R05255 Tube, ASME SB521 Tantalum Tube Supplier in India.

Specification For Tantalum Tubes

Tantalum Tubes Standard	ASTM B521 / ASME SB521
Tantalum Tube Dimensions	AISI, DIN, EN, GB, JIS, ASTM, ASME
Tantalum Tubes Size	1/8" ID up to 5" OD, customs diameters also available
Tantalum Seamless Tube OD	6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB
ASTM B521 Tantalum Tube Wall Thickness	0.3mm – 50 mm
Tantalum Tube Schedule	SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

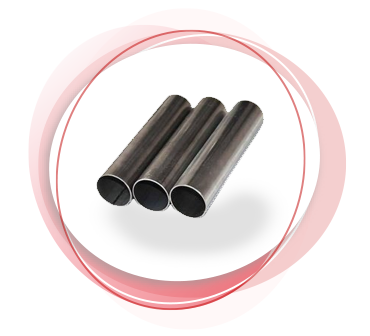

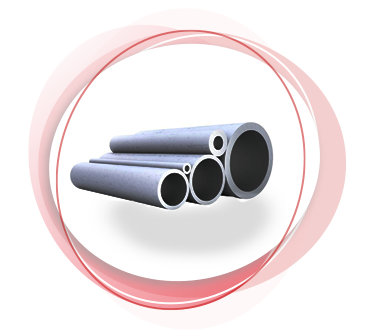

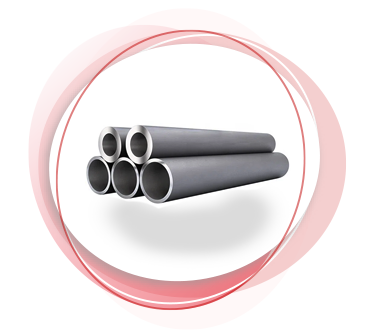

Tantalum Tube Types	Seamless / ERW / Welded
Tantalum Tube Length	Single Random, Double Random & Cut Length.
Tantalum Tube End	Plain End, Beveled End, Treaded

Equivalent Grades Of Tantalum Tubes

STANDARD	Material
Tantalum	R05200, R05400, R05255, R05252, R05240

ASTM B521 Tantalum Tubes Chemical Composition

Grade	C	O	N	H	Fe	Mo	Nb	Ni	Si	Ti	W
R05200(%,Max)	0.01	0.015	0.01	0.0015	0.01	0.02	0.1	0.01	0.005	0.01	0.05
R05400(%,Max)	0.01	0.03	0.01	0.0015	0.01	0.02	0.1	0.01	0.005	0.01	0.05
R05255(Ta10W) / (%,Max)	0.01	0.015	0.01	0.0015	0.01	0.02	0.1	0.01	0.005	0.01	9.0-11.0
R05252(Ta2.5W) / (%,Max)	0.01	0.015	0.01	0.0015	0.01	0.02	0.5	0.01	0.005	0.01	2.0-3.5
R05240(Ta-40Nb) / (%,Max)	0.01	0.02	0.01	0.0015	0.01	0.02	35.0-42.0	0.01	0.005	0.01	0.05

Tantalum Tube Mechanical Properties

Grade	Tensile strength　δbpsi (MPa)， ≥	Yield strength　δ0.2， psi (MPa)，≥	Elongation in 1″/2″ gage length，％， ≥
R05200/R05400	30000 (207)	20000 (138)	25
R05252	40000 (276)	28000　(193)	20
R05255	70000 (481)	60000 (414)	15
R05240	40000　(276)	28000 (193)	20

Tantalum R05200 Cold Drawn Tubes
Tantalum Alloy Corrugated Tube
Tantalum Seamless Tubing
Tantalum R05252 U Tubes
Tantalum Mechanical Tubing
Tantalum Pressure Tubing
Tantalum Alloy Square Tubes
Tantalum Industrial Tubes
UNS R05255 Boiler Tube
Tantalum Thick Wall Tubing
Tantalum R05400 High Pressure Tubes
