International Impex India Distributors is a renowned manufacturer, supplier and exporter of Pipe fitting products namely Return bend. We manufacture our products with excellent quality raw materials that are available in the market. Being one of India’s most well-known suppliers of Pipe fitting products, we supply them at industrially leading rates.

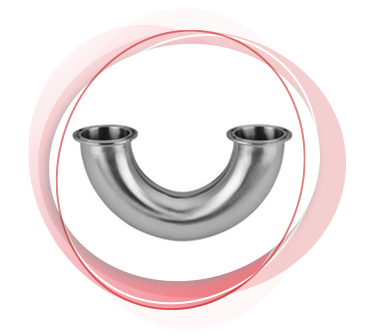

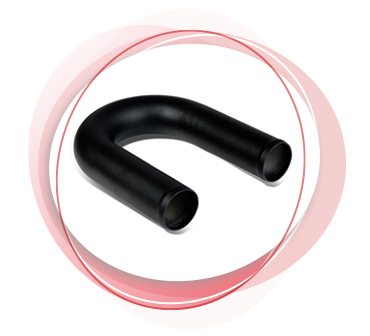

A Return Bend is a type of pipe fitting which allows a pipe to make a 180-degree change in direction. These Return bends are U-shaped and could be considered two L-bends joined together. Return bends can be moulded, cast or made by heating and bending existing pipe. Return bend fitting is generally threaded so that it can be connected with other pipes.

ANSI B16.9 Return Bend, Return Bends, Butt Weld Return Bend, Short Radius 180° Return Bends, Long Radius 180 Deg. Return Bends, We Provide ASME B16.9 Return Bend Cutting Machine For Best Price, Return Bend Stockist, Dimensions Butt Weld Return Bend 180° LR ASME B16.9, Return Bend Supplier, MSS SP-43 Return Bend In India, 180° Elbows (Return Bend), Return Bend Manufacturer in Mumbai, India.

When there are two pipes running parallel to each other and need to be connected, our return bend fitting is all you need to allow the fluid moving down one pipe to be returned up the other. These return bend fittings are the most commonly used pipe fitting product in multiple industries. There is a variety of settings where these return bends are highly demanded.

These return bends are extremely useful in solar hot water heaters where they can be used to maximize exposure to the sun so that water heats as it moves through the array of pipes. The materials used in the making of these return bends will impact how they function. Generally, various types of plastics, copper or cast iron are used in the making of these pipe fitting products. These return bends are popular and convenient in transferring liquids/fluids more than other substances.

Choosing the right material for your pipe fitting product is very important in order for it to last longer and have a good service life. These return bends are highly demanded beverage industry, chemical industry, food industry, marine industry, refrigeration industry, medical industry, etc.

Stainless Steel Return Bend, Return Bend Manufacturer, Carbon Steel Sch 80 (XH) 180º Return Bend Long Radius, SS Return Bend, ASTM A403 SS Return Bend, CS Return Bend Exporter, Alloy Steel Return Bend Manufacturers, Super Duplex Steel Return Bend, Inconel Pipe Return Bend, Hastelloy Return Bend, Monel Return Bend Supplier in India.

Specification For Return Bend

Specification Type	ASTM / ASME
Specification	B16.9
Size	Seamless Pipe Bends (1/2″ – 24″), ERW / Welded / Fabricated Pipe Bends (2″ – 36″)
Outer Diameter	38.0 mm – 206.0 mm
Wall Thickness	1.5 mm / 2.0 mm / 3.0 mm – greater wall thickness at request
Bend Radii	75 / 100 / 150 / 250 / 300 / 500 / 800 / 1,000 / 1,200 / 1,500 mm
Bending Radius(R)	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Bending angle (θ)	15°, 30°, 45°, 60°, 90°, 135°, 180°
Schedule	Sch 80 (XH)
Fitting Type	180º Return Bend, Long Radius
End Connection	Butt Weld,
Body Material	Carbon Steel, Stainless Steel, Alloy Steel, High Nickel Alloys

Ready Stock Of Return Bend Supplier

Stainless Steel Return Bend
Hastelloy C22 Return Bend
Incoloy 800 Return Bend
Alloy 825 Buttweld Return Bend
Monel 400 Buttweld Return Bend
ANSI B16.9 Short Radius 180° Return Bends
ASME B16.9 Return Bend
Stainless Steel 304H Return Bend
SS 304L Return Bend
Stainless Steel Short Radius Return Bend
ASTM A420 Long Radius Return Bend
Super Duplex Steel S32760Sch 80 (XH) 180º Return Bend LR

Alloy Steel Long Radius 180 Deg. Return Bends
Type of Monel K500 180° Elbows (Return Bend)
CS 180 Degree Short Radius Butt Weld Return Bend
Inconel 601 Return Bend
625 Inconel Return Bend
Carbon Steel A234 Return Bend
Titanium Grade 2 / 5 Return Bend
SS Industrial Return Bend
Carbon Steel 180° Long Radius Butt Weld Return Bend
Stainless Steel 316TI Seamless 180° Returns
Duplex Steel S32205 Return Bend

Pipe Bends & Return Dimensions in mm (Long & Short Radius)

Nominal Pipe Size	Outside Diameter	Back to Face		Center to Center
Inch.	OD	A	B	C	D
1/2	21.3	48	–	76	–
3/4	26.7	43	–	57	–
1	33.4	56	41	76	51
1 1/4	42.2	70	52	95	64
1 1/2	48.3	83	62	114	76
2	60.3	106	81	152	102
2 1/2	73	132	100	191	127
3	88.9	159	121	229	152
3 1/2	101.6	184	140	267	178
4	114.3	210	159	305	203
5	141.3	262	197	381	254
6	168.3	313	237	457	305
8	219.1	414	313	610	406
10	273.1	518	391	762	508
12	323.9	619	467	914	610
14	355.6	711	533	1067	711
16	406.4	813	610	1219	813
18	457.2	914	686	1372	914
20	508	1016	762	1524	1016
22	559	1118	838	1676	1118
24	610	1219	914	1829	1219
All dimensions are in mm
