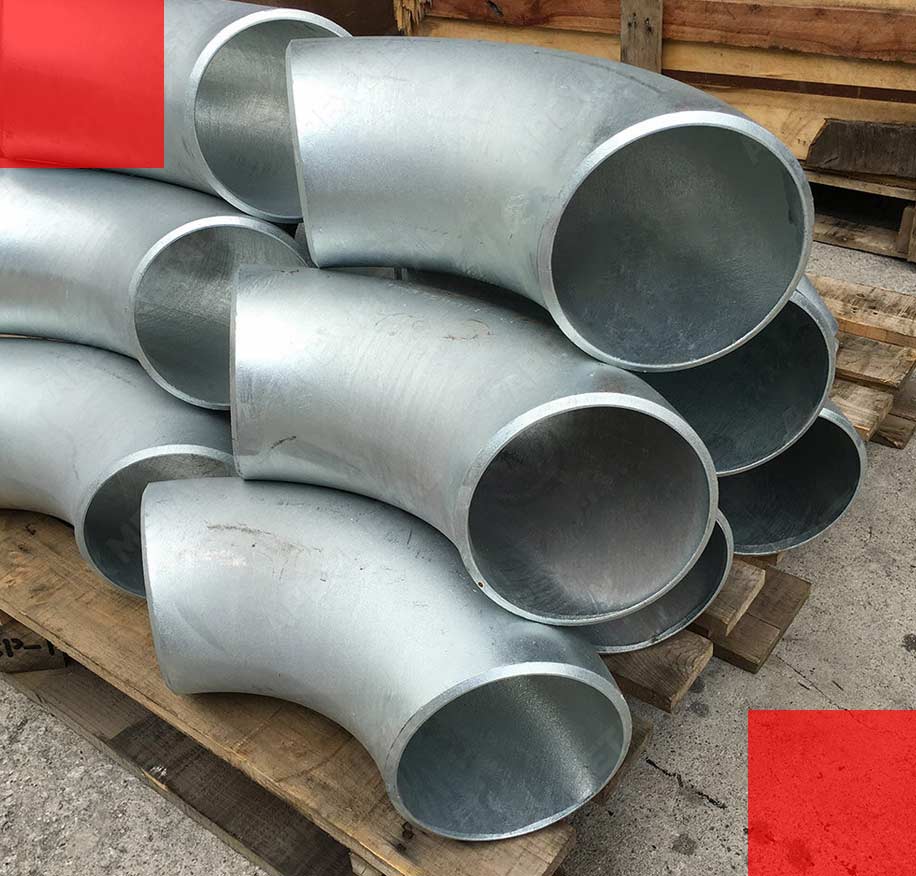

Katariya Steel Distributors is an eminent manufacturer, exporter and supplier of Pipe Fitting Elbows. We manufacture our products with the finest quality raw materials that are available in the market. Being one of India’s most famous suppliers of Pipe fitting products, we supply these elbows at industrially leading rates.

Steel pipe elbows are a key in a pressure piping system which is used to change the fluid flow direction. It is used to connect two pipes with the same or different nominal diameters and to make the pipe and the fluid direction turn to a certain direction of 45 degrees or 90 degrees. This change in flow direction adds pressure losses to the system due to impact, friction and re-acceleration. These pipe fitting products are available in various grades, types, specifications, diameters and many more.

ANSI B16.9 Buttweld Elbow, Pipe Elbow, Butt Weld Long Radius 90 Degree Elbow, Short Radius 45 Deg. Elbow, Butt weld Pipe Elbow, Seamless Pipe Elbow Stockist, Buttweld Reducing Elbow, Butt weld Elbow Supplier, Butt Weld 180° Elbow, Buttweld Pipe Elbow Manufacturer in Mumbai, India.

These Pipe fitting elbows can be classified into various parameters like direction angle, length and radius, connection with pipe and the material of construction. Elbows are distributed in two groups which define the distance over which the flowing fluid changes direction, the centerline of one end to the opposite face. It is known as the “centre of the face” distance and is equivalent to the radius through which the elbow is bent.

There are many types of pipe fitting elbows which are butt-welded elbows, socket welded elbows, threaded elbows, reducing elbows, male pipe elbows, female pipe elbows and the wall thickness of elbows. We perform several tests on our products to ensure our product quality, safety and durability. These pipe fitting elbows have a long service life. The elbows are specifically designed for use on process and control systems, instrumentation and equipment. These pipe fitting elbows are widely used in the chemical industry, petroleum industry, fluid power, electronic pulp and plants and many more.

Stainless Steel Butt weld Elbow, SR Elbow Manufacturer, SS 180 Degree Long Radius Elbow, ASTM A403 SS Elbow, Carbon Steel Buttweld Elbow Exporter, Alloy Steel Pipe Elbow, Super Duplex Steel Buttweld Elbow, Inconel Pipe Elbow, Hastelloy Buttweld Elbow, Monel Elbow Supplier in India.

Specification For Butt weld Pipe Elbow

Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size	Seamless Elbow ( 1/2″～24″), ERW / Welded / Fabricated Elbow (1/2″～48″)
Type	Seamless / ERW / Welded / Fabricated
Thickness	Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Form	Buttweld Pipe Elbow, 45 / 90 / 180 Deg Elbow, Long Radius Elbow, Short Radius Elbow, LR Elbow, SR Elbow.

Ready Stock Of Butt weld Pipe Elbow Supplier

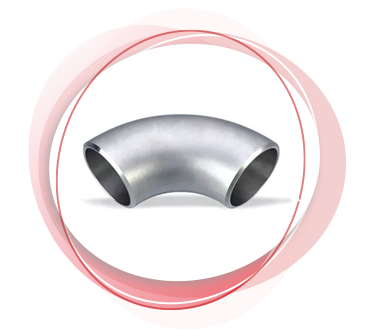

Stainless Steel Buttweld Pipe Elbow
Hastelloy C22 Seamless Pipe Elbow
Incoloy 800 Butt weld Elbow
Alloy 825 Short Radius Buttweld Elbow
Monel 400 Buttweld 1.5D Elbow
ANSI/ASME B16.9 Buttweld 1.5D Elbow
ASME B16.9 2D Elbow
Stainless Steel 304H SR Elbow
SS 304L Butt weld Elbow
Stainless Steel Butt Weld 90° Elbow

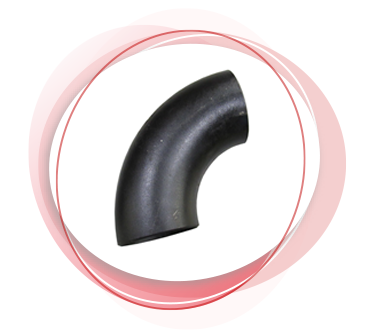

Carbon Steel 45° Butt-Weld Elbow
ASTM A420 Low Temperature Steel Pipe Elbow

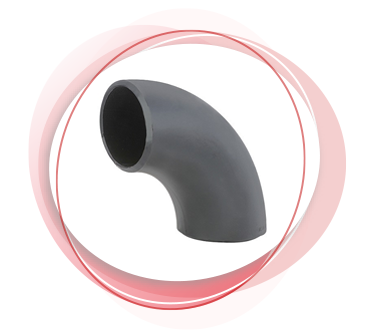

Alloy Steel Pipe Elbow
Type of Monel K500 Seamless Pipe Elbow
Butt weld Pipe Elbow
Inconel 601 Buttweld Elbow
625 Inconel Pipe Elbow
Carbon Steel A234 WPB Pipe Elbow
Titanium Grade 2 / 5 Buttweld Pipe Elbow
SS Industrial Buttweld Pipe Elbow
Stainless Steel 316TI Buttweld Pipe Elbow
Super Duplex Steel S32760 Pipe Elbow
Duplex Steel S32205 10D Elbow

ASME B16.9 45/90 Deg. Butt weld Elbow

Pipe Elbow Nominal Size		Pipe Elbow Outside Diameter Y	Wall Thickness T (Pipe Elbow Schedule)		45 Deg. Elbow LR Centre to Face B	45 Deg. Elbow LR Weight	90 Deg. Elbow LR Centre to Face A	90 Deg. Elbow LR Weight	90 Deg. Elbow SR Centre to Face A	90 Deg. Elbow SR Weight
mm	in	mm	mm	Schedule	mm	kg	mm	kg	mm	kg
15	1/2”	21.3	2.78	STD	15.9	0.04	38.1	0.08	–	–
			3.73	X.S	15.9	0.05	38.1	0.10	–	–
20	3/4”	26.7	2.87	STD	11.1	0.04	28.6	0.08	–	–
			3.91	X.S	11.1	0.05	28.6	0.11	–	–
25	1”	33.4	3.38	STD	22.2	0.09	38.1	0.15	25.4	0.11
			4.55	X.S	22.2	0.11	38.1	0.19	25.4	0.14
32	11/4”	42.2	3.56	STD	25.4	0.14	47.6	0.28	31.75	0.18
			4.85	X.S	25.4	0.2	47.6	0.39	31.75	0.24
40	11/2”	48.3	3.68	STD	28.6	0.2	57.1	0.4	38.1	0.26
			5.08	X.S	28.6	0.25	57.1	0.5	38.1	0.35
50	2”	60.3	3.91	STD	34.9	0.36	76.2	0.72	50.8	0.5
			5.54	X.S	34.9	0.5	76.2	1.0	50.8	0.68
65	21/2”	73.0	5.16	STD	44.4	0.73	95.2	1.46	63.5	0.95
			7.01	X.S	44.4	0.91	95.2	1.82	63.5	1.27
80	3”	88.9	5.49	STD	50.8	1.1	114.3	2.18	76.2	1.45
			7.62	X.S	50.8	1.45	114.3	2.86	76.2	1.95
100	4”	114.3	6.02	STD	63.5	2.1	152.4	4.2	101.6	2.8
			8.56	X.S	63.5	2.9	152.4	5.7	101.6	3.9
125	5”	141.3	6.65	STD	79.4	3.4	190.0	6.8	127.0	4.8
			9.5	X.S	79.4	5.0	190.0	10.0	127.0	6.5
150	6”	168.3	7.11	STD	95.2	5.1	229.0	10.1	152.4	6.8
			10.97	X.S	95.2	7.7	229.0	15.3	152.4	10.2
200	8”	219.1	8.18	STD	127.0	10.2	305.0	20.4	203.0	13.6
			12.7	X.S	127.0	15.5	305.0	30.9	203.0	20.9
250	10”	273.9	9.27	STD	159.0	18.1	381.0	36.1	254.0	24.1
			12.7	X.S	159.0	24.4	381.0	48.8	254.0	32.5
300	12”	323.9	9.52	STD	190.0	26.6	457.0	53.1	305.0	35.4
			12.7	X.S	190.0	35.0	457.0	70.0	305.0	46.7
350	14”	355.6	9.52	STD	222.0	34.1	533.0	68.1	356.0	45.4
			12.7	X.S	222.0	45.0	533.0	90.0	356.0	60.0
400	16”	406.4	9.52	STD	254.0	45.0	610.0	89.3	406.0	59.5
			12.7	X.S	254.0	59.0	610.0	118.0	406.0	78.7
450	18”	457.0	9.52	STD	286.0	56.5	686.0	113.0	457.0	75.6
			12.7	X.S	286.0	75.0	686.0	150.0	457.0	100.0
500	20”	508.0	9.52	STD	318.0	85.0	762.0	140.0	508.0	93.5
			12.7	X.S	318.0	112.5	762.0	186.0	508.0	124.0
600	24”	610.00	9.52	STD	381.0	101.5	914.0	203.0	610.0	135.0
			12.7	X.S	381.0	134.5	914.0	269.0	610.0	179.0
