Slip On Flanges Manufacturer

  • Home
  • Slip On Flanges

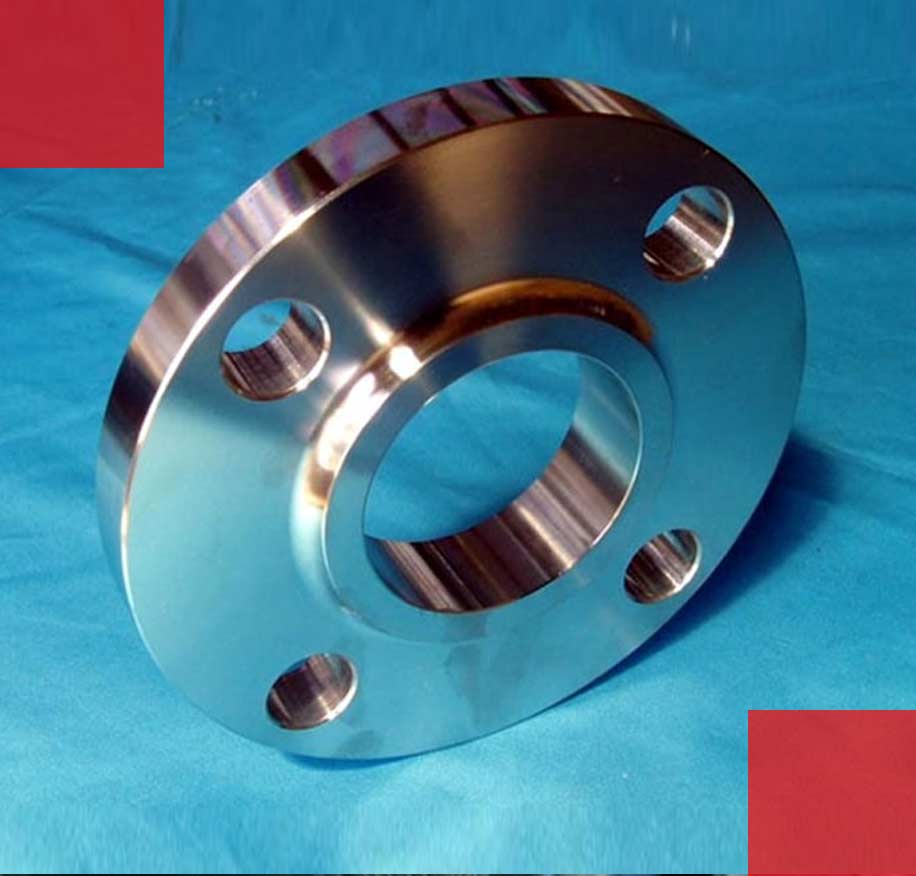

Slip-on Flanges are manufactured, exported, and supplied by International Impex India Distributors, a well-known and renowned manufacturer, exporter, and supplier. We use the highest-quality raw materials available on the market to create our products. We are one of the most reputable suppliers of Slip-on Flanges, and we offer them at a reasonable price.

Slip-on Flanges are popularly known as SO Flanges. These SO Flanges slip over pipes are designed to bit slightly bigger on the inside than the pipe. These flanges connect to a pipe through fillet weld at the flange top and bottom. They are used to insert the pipe into the inner hole of the flange, as the pipe and flange could be connected by lap welding at the top and bottom of the flange.

Slip On Flanges, Slip On Raised Face Flanges, Flat Face Slip On Flanges, SOFF Flanges, ANSI B16.5 Slip On Flanges Stockist, SORF Flange, Slip On Flanges Supplier, ASTM A182 Stainless Steel Slip On Flanges, Slip On Plate Flange, Slip On Flanges Manufacturer in Mumbai, India.

Slip-on flanges are cost-effective in comparison to other weld-beck flanges which is one of the reasons why customers opt for these slip-on flanges. These flanges are widely used for low pressure, medium temperature pipeline systems. Slip-on flanges are quite durable in nature and are widely used in industries that require lower pressure.

The Slip-on flanges are an excellent choice instead of a weld-neck as it does not have a weld bevel which therefore allows the pipe to be adjusted in length relative to its position of the flange. The bore of the slip-on flange will give it enough amount of space for the matching pipe which allows for enough working space for the welder and fabricator to make the connection. Our slip-on flanges are tested several times to ensure their quality, safety and durability.

Because of their superior capabilities, these Slip-on flanges are widely employed in a variety of industries. They're used in the oil and gas business, as well as the petrochemical, chemical, and nuclear industries. These slip-on flanges are convenient and simple to install, making them ideal for both commercial and industrial applications.

Slip On Flanges Manufacturer in India, SS Slip On Flange, Duplex Steel Slip On Flange, Carbon Steel Slip On Flange Exporter, Alloy Steel Slip On Flange Manufacturers, Super Duplex Steel Slip On Flanges, Inconel Slip On Flanges, Hastelloy Slip On Flanges, Monel Slip On Flange Supplier in India.

Specification For Slip On Flanges

Dimensions ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size 1/2" (15 NB) to 48" (1200NB)
Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
DIN DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
BS BS4504 , BS4504, BS1560, BS10
Flange Face Type Flate Face (FF), Raised Face (RF)

Ready Stock Of Slip On Flanges Supplier

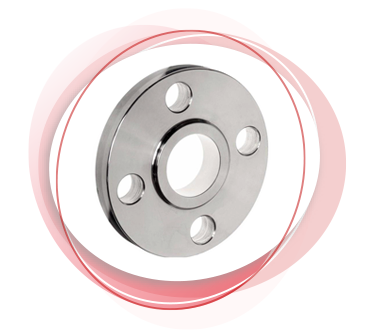

  • Stainless Steel Slip On Flange
  • Hastelloy C22 Slip On Flanges
  • Incoloy 800 Slip On Flange
  • Alloy 825 Slip On Flanges
  • Monel 400 Slip On Flange
  • ANSI/ASME B16.5 Raised Face Slip On Flanges
  • ASME B16.5 Slip On Flanges
  • Stainless Steel 304H Slip On Flanges
  • SS 304L Slip On (SORF) Flanges
  • Copper Nickel SORTJ Flanges
  • ASTM A350 Low Temperature Steel Slip On Flanges

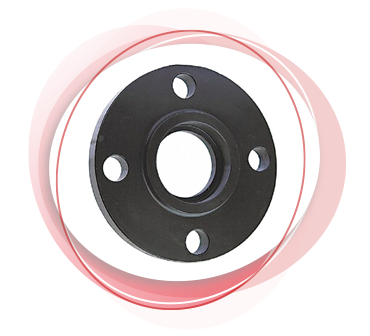

  • Alloy Steel Slip On Flanges
  • Type of Monel K500 Slip On Flanges
  • Slip On Raised Face Flanges
  • Inconel 601 Slip On Flanges
  • 625 Inconel Slip On Flanges

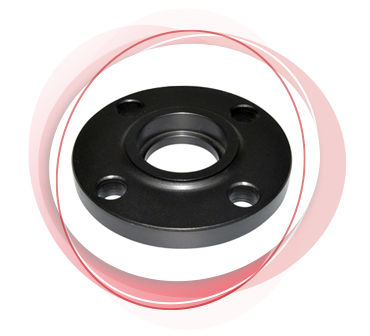

  • Carbon Steel A105 Slip On Flanges
  • Titanium Grade 2 / 5 Slip On Flanges
  • SS Industrial Slip On Plate Flange
  • Carbon Steel SOFF Flanges
  • Stainless Steel 316TI Slip On Flanges
  • Super Duplex Steel S32760 Slip On Flanges
  • Duplex Steel S32205 Slip On Flanges

Class 150 Slip-on Flange Dimensions

Size in Inch Size in mm Outer Dia. Flange Thick. Hub OD Flange Length RF Dia. RF Height PCD Socket Bore No of Bolts Bolt Size UNC Machine Bolt Length RF Stud Length Hole Size ISO Stud Size Weight in kg
A B C D E F G H
1/2 15 90 9.6 30 14 34.9 2 60.3 22.2 4 1/2 50 55 5/8 M14 0.8
3/4 20 100 11.2 38 14 42.9 2 69.9 27.7 4 1/2 50 65 5/8 M14 0.9
1 25 110 12.7 49 16 50.8 2 79.4 34.5 4 1/2 55 65 5/8 M14 0.9
1 1/4 32 115 14.3 59 19 63.5 2 88.9 43.2 4 1/2 55 70 5/8 M14 1.4
1 1/2 40 125 15.9 65 21 73 2 98.4 49.5 4 1/2 65 70 5/8 M14 1.4
2 50 150 17.5 78 24 92.1 2 120.7 61.9 4 5/8 70 85 3/4 M16 2.3
2 1/2 65 180 20.7 90 27 104.8 2 139.7 74.6 4 5/8 75 90 3/4 M16 3.2
3 80 190 22.3 108 29 127 2 152.4 90.7 4 5/8 75 90 3/4 M16 3.7
3 1/2 90 215 22.3 122 30 139.7 2 177.8 103.4 8 5/8 75 90 3/4 M16 5
4 100 230 22.3 135 32 157.2 2 190.5 116.1 8 5/8 75 90 3/4 M16 5.9
5 125 255 22.3 164 35 185.7 2 215.9 143.8 8 3/4 85 95 7/8 M20 6.8
6 150 280 23.9 192 38 215.9 2 241.3 170.7 8 3/4 85 100 7/8 M20 8.6
8 200 345 27 246 43 269.9 2 298.5 221.5 8 3/4 90 110 7/8 M20 13.7
10 250 405 28.6 305 48 323.8 2 362 276.2 12 7/8 100 115 1 M24 19.5
12 300 485 30.2 365 54 381 2 431.8 327 12 7/8 100 120 1 M24 29
14 350 535 33.4 400 56 412.8 2 476.3 359.2 12 1 115 135 1 1/8 M27 41
16 400 595 35 457 62 469.9 2 539.8 410.5 16 1 115 135 1 1/8 M27 54
18 450 635 38.1 505 67 533.4 2 577.9 461.8 16 1 1/8 125 145 1 1/4 M30 59
20 500 700 41.3 559 71 584.2 2 635 513.1 20 1 1/8 140 160 1 1/4 M30 75
24 600 815 46.1 663 81 692.2 2 749.3 616 20 1 1/4 150 170 1 3/8 M33 100

Class 300 Slip-on Flange Dimensions

Size in Inch Size in mm Outer Dia. Flange Thick. Hub OD Flange Length RF Dia. RF Height PCD Socket Bore No of Bolts Bolt Size UNC Machine Bolt Length RF Stud Length Hole Size ISO Stud Size Weight in kg
A B C D E F G H
1/2 15 95 12.7 38 21 34.9 2 66.7 22.2 4 1/2 55 65 5/8 M14 1.2
3/4 20 115 14.3 48 24 42.9 2 82.6 27.7 4 5/8 65 75 3/4 M16 1.4
1 25 125 15.9 54 25 50.8 2 88.9 34.5 4 5/8 65 75 3/4 M16 1.4
1 1/4 32 135 17.5 64 25 63.5 2 98.4 43.2 4 5/8 70 85 3/4 M16 1.8
1 1/2 40 155 19.1 70 29 73 2 114.3 49.5 4 3/4 75 90 7/8 M20 2.7
2 50 165 20.7 84 32 92.1 2 127 61.9 8 5/8 75 90 3/4 M16 3.2
2 1/2 65 190 23.9 100 37 104.8 2 149.2 74.6 8 3/4 85 100 7/8 M20 4.6
3 80 210 27 117 41 127 2 168.3 90.7 8 3/4 90 110 7/8 M20 5.9
3 1/2 90 230 28.6 133 43 139.7 2 184.2 103.4 8 3/4 95 110 7/8 M20 7.7
4 100 255 30.2 146 46 157.2 2 200 116.8 8 3/4 95 115 7/8 M20 10
5 125 280 33.4 178 49 185.7 2 235 144.4 8 3/4 110 120 7/8 M20 12.7
6 150 320 35 206 51 215.9 2 269.9 171.4 12 3/4 110 120 7/8 M20 17.7
8 200 380 39.7 260 60 269.9 2 330.2 222.2 12 7/8 120 140 1 M24 26
10 250 445 46.1 321 65 323.8 2 387.4 277.4 16 1 140 160 1 1/8 M27 36
12 300 520 49.3 375 71 381 2 450.8 328.2 16 1 1/8 145 170 1 1/4 M30 52
14 350 585 52.4 425 75 412.8 2 514.4 360.2 20 1 1/8 160 180 1 1/4 M30 75
16 400 650 55.6 483 81 469.9 2 571.5 411.2 20 1 1/4 165 190 1 3/8 M33 86
18 450 710 58.8 533 87 533.4 2 628.6 462.3 24 1 1/4 170 195 1 3/8 M33 113
20 500 775 62 587 94 584.2 2 685.8 514.4 24 1 1/4 185 205 1 3/8 M33 143
24 600 915 68.3 702 105 692.2 2 812.8 616 24 1 1/2 205 230 1 5/8 M39 216

Class 400 Slip-on Flange Dimensions

Size in Inch Size in mm Outer Dia. Flange Thickness Hub OD Flange Length RF Dia. RF Height PCD Socket Bore No of Bolts Bolt Size UNC RF Stud Length Hole Size ISO Stud Size Weight in kg
A B C D E F G H
1/2 15 95 14.3 38 22 34.9 7 66.7 22.2 4 1/2 75 5/8 M14 1.3
3/4 20 115 15.9 48 25 42.9 7 82.6 27.7 4 5/8 90 3/4 M16 1.5
1 25 125 17.5 54 27 50.8 7 88.9 34.5 4 5/8 90 3/4 M16 1.8
1 1/4 32 135 20.7 64 29 63.5 7 98.4 43.2 4 5/8 95 3/4 M16 2.3
1 1/2 40 155 22.3 70 32 73 7 114.3 49.5 4 3/4 110 7/8 M20 3.2
2 50 165 25.4 84 37 92.1 7 127 61.9 8 5/8 110 3/4 M16 4.1
2 1/2 65 190 28.6 100 41 104.8 7 149.2 74.6 8 3/4 120 7/8 M20 5.9
3 80 210 31.8 117 46 127 7 168.3 90.7 8 3/4 125 7/8 M20 7.3
4 100 255 35 146 51 157.2 7 200 116.1 8 7/8 140 1 M24 11.8
5 125 280 38.1 178 54 185.7 7 235 143.8 8 7/8 145 1 M24 14.1
6 150 320 41.3 206 57 215.9 7 269.9 170.7 12 7/8 150 1 M24 20
8 200 380 47.7 260 68 269.9 7 330 221.5 12 1 170 1 1/8 M27 31
10 250 445 54 321 73 323.8 7 387.4 276.2 16 1 1/8 190 1 1/4 M30 42
12 300 520 57.2 375 79 381 7 450.8 327 16 1 1/4 205 1 3/8 M33 59
14 350 585 60.4 425 84 412.8 7 514.4 359.2 20 1 1/4 210 1 3/8 M33 82
16 400 650 63.5 483 94 469.9 7 571.5 410.5 20 1 3/8 220 1 1/2 M36 107
18 450 710 66.7 533 98 533.4 7 628.6 461.8 24 1 3/8 230 1 1/2 M36 130
20 500 775 69.9 587 102 584.2 7 685.8 513.1 24 1 1/2 240 1 3/4 M39 157
24 600 915 76.2 702 114 692.2 7 812.8 616 24 1 3/4 265 1 7/8 M45 232

Class 600 Slip-on Flange Dimensions

Size in Inch Size in mm Outer Dia. Flange Thickness Hub OD Flange Length RF Dia. RF Height PCD Socket Bore No of Bolts Bolt Size UNC RF Stud Length Hole Size ISO Stud Size Weight in kg
A B C D E F G H
1/2 15 95 14.3 38 22 34.9 7 66.7 22.2 4 1/2 75 5/8 M14 1.3
3/4 20 115 15.9 48 25 42.9 7 82.6 27.7 4 5/8 90 3/4 M16 1.4
1 25 125 17.5 54 27 50.8 7 88.9 34.5 4 5/8 90 3/4 M16 1.8
1 1/4 32 135 20.7 64 29 63.5 7 98.4 43.2 4 5/8 95 3/4 M16 2.3
1 1/2 40 155 22.3 70 32 73 7 114.3 49.5 4 3/4 110 7/8 M20 3.2
2 50 165 25.4 84 37 92.1 7 127 61.9 8 5/8 110 3/4 M16 4.1
2 1/2 65 190 28.6 100 41 104.8 7 149.2 74.6 8 3/4 120 7/8 M20 5.9
3 80 210 31.8 117 46 127 7 168.3 90.7 8 3/4 125 7/8 M20 7.3
4 100 275 38.1 152 54 157.2 7 215.9 116.1 8 7/8 145 1 M24 16.8
5 125 330 44.5 189 60 185.7 7 266.7 143.8 8 1 165 1 1/8 M27 29
6 150 355 47.7 222 67 215.9 7 292.1 170.7 12 1 170 1 1/8 M27 36
8 200 420 55.6 273 76 269.9 7 349.2 221.5 12 1 1/8 190 1 1/4 M30 52
10 250 510 63.5 343 86 323.8 7 431.8 276.2 16 1 1/4 215 1 3/8 M33 77
12 300 560 66.7 400 92 381 7 489 327 20 1 1/4 220 1 3/8 M33 91
14 350 605 69.9 432 94 412.8 7 527 359.2 20 1 3/8 235 1 1/2 M36 105
16 400 685 76.2 495 106 469.9 7 603.2 410.5 20 1 1/2 255 1 5/8 M39 150
18 450 745 82.6 546 117 533.4 7 654 461.8 20 1 5/8 275 1 3/4 M42 182
20 500 815 88.9 610 127 584.2 7 723.9 513.1 24 1 5/8 285 1 3/4 M42 232
24 600 940 101.6 718 140 692.2 7 838.2 616 24 1 7/8 330 2 M48 332

Class 900 Slip-on Flange Dimensions

Size in Inch Size in mm Outer Dia. Flange Thickness Hub OD Flange Length RF Dia. RF Height PCD Socket Bore No of Bolts Bolt Size UNC RF Stud Length Hole Size ISO Stud Size Weight in kg
A B C D E F G H
1/2 15 120 22.3 38 32 34.9 7 82.6 22.2 4 3/4 110 7/8 M20 1.8
3/4 20 130 25.4 44 35 42.9 7 88.9 27.7 4 3/4 115 7/8 M20 2.3
1 25 150 28.6 52 41 50.8 7 101.6 34.5 4 7/8 125 1 M24 3.6
1 1/4 32 160 28.6 64 41 63.5 7 111.1 43.2 4 7/8 125 1 M24 4.1
1 1/2 40 180 31.8 70 44 73 7 123.8 49.5 4 1 140 1 1/8 M27 5.5
2 50 215 38.1 105 57 92.1 7 165.1 61.9 8 7/8 145 1 M24 11.5
2 1/2 65 245 41.3 124 64 104.8 7 190.5 74.6 8 1 160 1 1/8 M27 16.5
3 80 240 38.1 127 54 127 7 190.5 90.7 8 7/8 145 1 M24 12
4 100 290 44.5 159 70 157.2 7 235 116.1 8 1 1/8 170 1 1/4 M30 24
5 125 350 50.8 190 79 185.7 7 279.4 143.8 8 1 1/4 190 1 3/8 M33 38
6 150 380 55.6 235 86 215.9 7 317.5 170.7 12 1 1/8 190 1 1/4 M30 50
8 200 470 63.5 298 102 269.9 7 393.7 221.5 12 1 3/8 220 1 1/2 M36 78
10 250 545 69.9 368 108 323.8 7 469.9 276.2 16 1 3/8 235 1 1/2 M36 112
12 300 610 79.4 419 117 381 7 533.4 327 20 1 3/8 255 1 1/2 M36 148
14 350 640 85.8 451 130 412.8 7 558.8 359.2 20 1 1/2 275 1 5/8 M39 182
16 400 705 88.9 508 133 469.9 7 616 410.5 20 1 5/8 285 1 3/4 M42 193
18 450 785 101.6 565 152 533.4 7 685.8 461.8 20 1 7/8 325 2 M48 258
20 500 855 108 622 159 584.2 7 749.3 513.1 20 2 350 2 1/8 M52 317
24 600 1040 139.7 749 203 692.2 7 901.7 616 20 2 1/2 440 2 5/8 M64 608

Class 1500 Slip-on Flange Dimensions

Size in Inch Size in mm Outer Dia. Flange Thickness Hub OD Flange Length RF Dia. RF Height PCD Socket Bore No of Bolts Bolt Size UNC RF Stud Length Hole Size ISO Stud Size Weight in kg
A B C D E F G H
1/2 15 120 22.3 38 32 34.9 7 82.6 22.2 4 3/4 110 7/8 M20 1.8
3/4 20 130 25.4 44 35 42.9 7 88.9 27.7 4 3/4 115 7/8 M20 2.3
1 25 150 28.6 52 41 50.8 7 101.6 34.5 4 7/8 125 1 M24 3.7
1 1/4 32 160 28.6 64 41 63.5 7 111.1 43.2 4 7/8 125 1 M24 4.1
1 1/2 40 180 31.8 70 44 73 7 123.8 49.5 4 1 140 1 1/8 M27 5.5
2 50 215 38.1 105 57 92.1 7 165.1 61.9 8 7/8 145 1 M24 9.8
2 1/2 65 245 41.3 124 64 104.8 7 190.5 74.6 8 1 160 1 1/8 M27 16.4

People also Search for Slip On Flange

SS 304L Slip On (SORF) Flanges at Best Price, ANSI B16.5 High Nickel Alloy Slip On Flange, Stainless Steel Slip On Flange Manufacturer In India, ASTM A182 SS Slip On Flange, Duplex Steel S31803 Slip On Flange, Super Duplex Steel 2507 Slip On Flanges Price, Inconel 601 Slip On Flange, Hastelloy C276 Slip On Flanges, Incoloy 825 Industrial Slip On Flanges Dealer, SMO 254 Slip On Flanges Manufacturer In Mumbai, Alloy 20 Slip On Flange, Cr-Mo Slip On Flange, 304 Stainless Steel Slip On Flanges, 304L SS Slip On Flange Price, Duplex Steel Slip On Raised Face Flange, Duplex Stainless Steel Slip On Flanges in Mumbai, Ferritic Stainless Steel Slip On Flange Manufacturer, Copper Nickel Slip On Flanges in Mumbai, Aluminium Alloy Flat Face Slip On Flanges Suppliers, Copper Alloy Slip On Flanges, Carpenter 20 Slip On Flange Exporter, Inconel 625 Slip On Flange, Incoloy 800HT Slip On Flanges, ASTM A105 Cr-Mo Slip On Plate Flange, Low Temperature Steel Slip On Flanges in India, Alloy Steel F5 Slip On Flange, Stainless Steel Slip On Flanges in India, Aluminium Slip On Flange Price List In Mumbai, Super Duplex Stainless Steel S32750 Slip On Flanges Stockholder, DSS Slip On Flange Dimensions, SDSS Raised Face Slip On Flange, Low Temperature Carbon Steel ASTM A350 Slip On Flange Dimensions, SS SORF Flanges, CS Slip On Flange Suplier In India, LTCS Slip On Flange Catalogue, SOFF Flanges Manufacturers In India, SORTJ Flanges Price List, Slip On Flange Manufacturers In Mumbai.

Slip On Flange Applications and Uses

Aerospace Industry

Oil & Gas Industry

Petrochemical Industry

Construction Industry

Mining Industry
