International Impex India

Tantalum Sheets / Plates & Coils Manufacturer

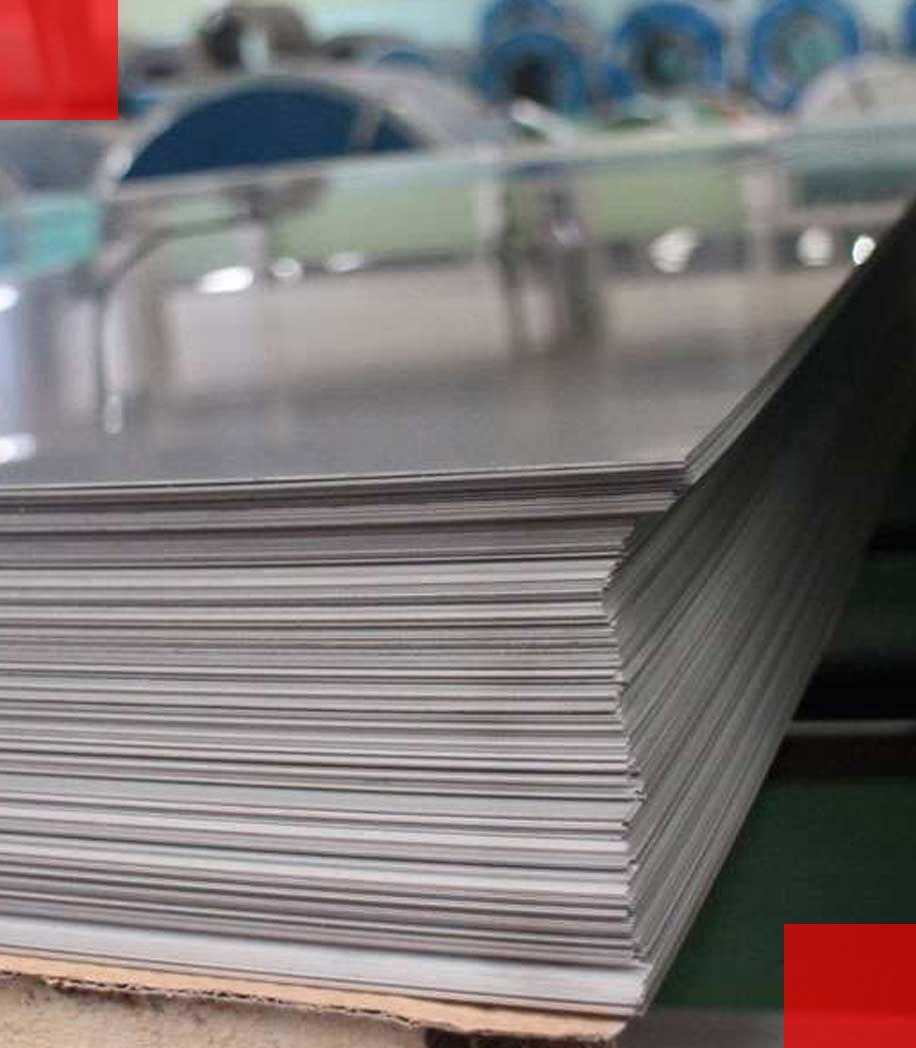

Katariya steels is a well-known steel producing company which is also a leading manufacturer of Tantalum sheet plate coil. Tantalum Sheets and Plates are made from high-quality tantalum added with tungsten and rhenium. These plates are essentially dark blue-gray metal plates with exceptional ductility and hardness.

At temperatures below 150 degrees Celsius, the plates have superior corrosion resistance to various chemicals and dissolve only in hydrofluoric acids. Tantalum has the highest melting point, allowing for the formation of a protective and thin oxide layer. It comes in a width of 10mm – 2500mm, a thickness of 0.5 mm – 30 mm, and length as per required by the client's need.

As a manufacturer, supplier, and exporter, Katariya Steels offers specific engineered products made from high-quality raw materials. As a result, these are purchased from well-known vendors. To perfect the product, we used cutting-edge technology and tools. Our manufacturing process adheres to proven industrial standards as well as national and international standards. We understand our customers' needs and requirements, so we provide them with products in precise shapes, sizes, grades, and dimensions.

Tantalum Sheets, Tantalum Plates, ASTM B708 Tantalum Coils, Tantalum R05255 Sheet, Tantalum Alloy Plates, Tantalum R05400 Coils, Ta Alloy Sheets, Tantalum Coils, Ta R05240 Sheet, Tantalum Hot Rolled Sheets, Tantalum CR Plates, Tantalum Alloy R05200 Sheet, UNS R05252 Coils, Tantalum Sheets Supplier in Mumbai, India.

Tantalum sheets are also used in certain missile components, chemical process, nuclear reactors, and nitrogen in the form of nitrides and oxides. Tantalum Plates are also used in the manufacture of vacuum furnace parts, thermowells, fasteners, and valve bodies. Tantalum Plates are also used as an orthopedic implant material, and it is a component of high-refractive-index glasses.

Katariya steels make the finest quality tantalum sheet plate coils like no other steel company on the market. Customer satisfaction is the topmost priority of Katariya steels. We provide the best and most efficient service throughout the purchasing process and always be present if there comes a need for any maintenance of our products. Katariya steels are the company that you need because we provide efficient service like no other steel manufacturing company.

Ta Alloy Perforated Sheets, Ta Alloy R05255 Rolls, Ta Alloy Flats, Tantalum Alloy Sheets, Tantalum Alloy Strips, Tantalum Blank, Tantalum Rings, Tantalum Foils, Tantalum Alloy Plain Sheets, Tantalum R05240 Shim Sheets, Tantalum Circle, Tantalum Foils Stockist in India.

Specification For Tantalum Sheets / Plates / Coils

Specification ASTM B708 / ASME SB708
Thickness Plate 0125″ to 5.00″ / Sheets 008″ to .0125″
Sheet / Plates Width 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Sheet / Plates Length 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Sheets Hardness Half Hard, Quarter Hard, Soft, Hard, Spring Hard
Plate / Sheets Size 15NB to 150NB In
Tempers Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard
Coils Thickness 0.3 mm to 120 mm
Coils Length AS PER CUSTOMER’S REQUIREMENT
Form Sheets, Plates, Coils, Strips, Circle, Ring, Disc, Foils
Value Added Service Cladding, Heat Treatment, Annealed, Pickling, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.

Equivalent Grades Of Tantalum Sheets / Plates / Coils

STANDARD Grade
Tantalum R05200 / R05252 / R05255 / R05400 / R05240

Tantalum Sheets / Plates / Coils Chemical Composition

Grade C O N H Fe Mo Nb Ni Si Ti W
Tantalum 0.01 max 0.015 max 0.01 0.0015 max 0.01 max 0.02 0.1 max 0.01 max 0.005 max 0.01 0.05

Tantalum Sheets / Plates / Coils Mechanical Properties

Grade Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Tantalum 16.6 g/cc 3290 K, 2996°C, 5462°F 285 M Pa (41 ksi) 170 M Pa (25 ksi) 30%

Ready Stock Of Tantalum Sheets / Plates / Coils Supplier

  • Tantalum Sheets
  • Tantalum Plates Sheets
  • Tantalum Coils
  • Ta Alloy R05200 Sheets
  • Tantalum Plates
  • Tantalum Alloy R05240 Plates
  • Tantalum Plasma Cutting Plate
  • Tantalum Alloy Plates
  • Type of Tantalum R05252 Sheets
  • Tantalum Alloy Sheet Thickness Tolerance
  • Tantalum Alloy R05255 Coils
  • Ta Alloy Plates
  • Tantalum Slitting Coils
  • Tantalum R05400 Sheets Sizes
  • Tantalum Sheet and Plate
  • Tantalum Alloy Plate Thickness Tolerance Chart
  • Tantalum Alloy Sheets
  • Check Tantalum Plates Sizes
  • Tantalum Alloy R05200 Sheets
  • Wide Range of Tantalum Gr.R05252 Coils
  • Check Tantalum Sheets / Plates Sizes
  • Tantalum Coils Grades Chart Pdf
  • Ta Custom Plates
  • Tantalum Embossed Sheet
  • Tantalum Alloy Industrial Sheets
  • Ta Alloy Sheets
  • Tantalum Alloy Flat Strips
  • UNS R05255 Tantalum Coils
  • Ta Alloy R05400 Coils
  • Tantalum Plates Standard
  • Ta Gr.R05240 Coils
  • Tantalum Sheet and ASTM B708 Plate/ Coils

Tantalum Sheets / Plates Thickness Chart

Tantalum Gauge Chart*
Gauge
Number		 Inches MM
8 .17187 4.365
9 .15625 3.968
10 .14062 3.571
11 .125 3.175
12 .10937 2.778
14 .07812 1.984
16 .0625 1.587
18 .050 1.270
20 .0375 .9525
22 .03125 .7937
24 .025 .635
26 .01875 .476
28 .01562 .396
30 .0125 .3175

Tantalum Sheets / Plates Weight / Size

WEIGHT PER Tantalum SHEET :
THICKNESS IN MM SIZE IN MM WEIGHT KG/M2
2000 X 1000 2500 X 1250 3000 X 1500
0.18 2.88 – – 1.44
0.20 3.20 – – 1.60
0.22 3.52 – – 1.76
0.24 3.84 – – 1.92
0.27 4.32 – – 2.16
0.28 4.48 – – 2.24
0.32 5.12 – – 2.56
0.38 6.08 – – 3.04
0.44 7.04 11.00 – 3.52
0.50 8.00 12.50 – 4.00
0.56 8.96 14.00 – 4.48
0.63 10.08 15.75 – 5.04
0.75 12.00 18.75 – 6.00
0.88 14.08 22.00 – 7.04
1.00 16.00 25.00 36.00 8.00
.1.13 18.08 28.25 40.00 9.04
1.25 20.00 31.25 45.00 10.00
1.38 22.03 34.50 50.00 72.00
1.50 24.00 37.50 54.00 12.00
1.75 28.00 43.75 63.00 14.00
2.00 32.00 50.00 72.00 16.00
2.25 36.00 56.25 81.00 18.00
2.50 40.00 62.50 90.00 20.00
2.75 44.00 68.75 99.00 22.00
3.00 48.00 75.00 108.00 24.00
3.25 52.00 81.25 117.00 26.00
3.50 56.00 87.50 126.00 28.00
3.75 60.00 93.75 135.00 30.00
4.00 64.00 100.00 144.00 32.00
4.25 68.00 106.25 153.00 34.00
4.50 72.00 112.50 162.00 36.00
5.00 80.00 125.00 180.00 40.00
5.50 88.00 137.50 198.00 44.00
6.00 96.00 150.00 216.00 48.00
6.50 104.00 162.50 234.00 52.00
7.00 112.00 175.00 252.00 56.00
7.50 120.00 187.50 270.00 60.00
8.00 128.00 200.00 288.00 64.00

Tantalum Sheets / Plates Thickness Tolerance

Thickness
in. (mm)		Sheet / Plates Width
36 (914.4)
in. (mm		48 (1,219)
in. (mm)
0.017–0.030 (0.43–0.76)0.0015 (0.038)0.002 (0.051)
0.031–0.041 (0.79–1.04)0.002 (0.051)0.003 (0.076)
0.042–0.059 (1.1–1.5)0.003 (0.076)0.004 (0.10)
0.060–0.073 (1.5–1.9)0.003 (0.076)0.0045 (0.11)
0.074–0.084 (1.9–2.1)0.004 (0.10)0.0055 (0.14)
0.085–0.099 (2.2–2.5)0.004 (0.10)0.006 (0.15)
0.100–0.115 (2.5–2.9)0.005 (0.13)0.007 (0.18)
0.116–0.131 (2.9–3.3)0.005 (0.13)0.0075 (0.19)
0.132–0.146 (3.4–3.7)0.006 (0.15)0.009 (0.23)
0.147–0.187 (3.7–4.7)0.007 (0.18)0.0105 (0.2

Tantalum Coils Stock

Coil/Coil Type
Sizes
Availability
ASTM B708 Tantalum Coil
0.4mm
√
ASTM B708 Tantalum Coil
0.5mm
√
ASTM B708 Tantalum Coil
0.8mm
√
ASTM B708 Tantalum Coil
1mm
√
ASTM B708 Tantalum Coil
1.2mm
√
ASTM B708 Tantalum Coil
1.6mm
√
ASTM B708 Tantalum Coil
2mm
√
ASTM B708 Tantalum Coil
3mm
√
ASTM B708 Tantalum Coil
4mm
√
Tantalum ASTM B708 Coil
5mm
√
ASTM B708 Tantalum Coil
6mm
√
ASTM B708 Tantalum Coil
8mm
√
ASTM B708 Tantalum Coil
10mm
√
ASTM B708 Tantalum Coil
12mm
√
ASTM B708 Tantalum Coil
16mm
√
ASTM B708 Tantalum Coil
20mm
√
ASTM B708 Tantalum Coil
25mm
√

Cold Rolled Coils Descaled ASTM B708, ASME SB 708

Steel Coil
Size (mm)
Weight per Coil (Kg)
Size(mm)
Weight per Coil (Kg)
Tantalum Coil
4000 x 2000 x 2.0
136.0
3000 x 1500 x 5.0
191.0
Tantalum Coil
4000 x 2000 x 3.0
204.0
4000 x 2000 x 5.0
340.0
Tantalum Coil
2500 x 1250 x 4.0
106.0
2500 x 1250 x 6.0
159.0
Tantalum Coil
3000 x 1500 x 4.0
153.0
3000 x 1500 x 6.0
230.0
Tantalum Coil
4000 x 2000 x 4.0
272.0
4000 x 2000 x 6.0
408.0
Tantalum Coil
2500 x 1250 x 5.0
133.0
