Stainless Steel 904L Sheets / Plates & Coils Manufacturer

  • Home
  • Stainless Steel

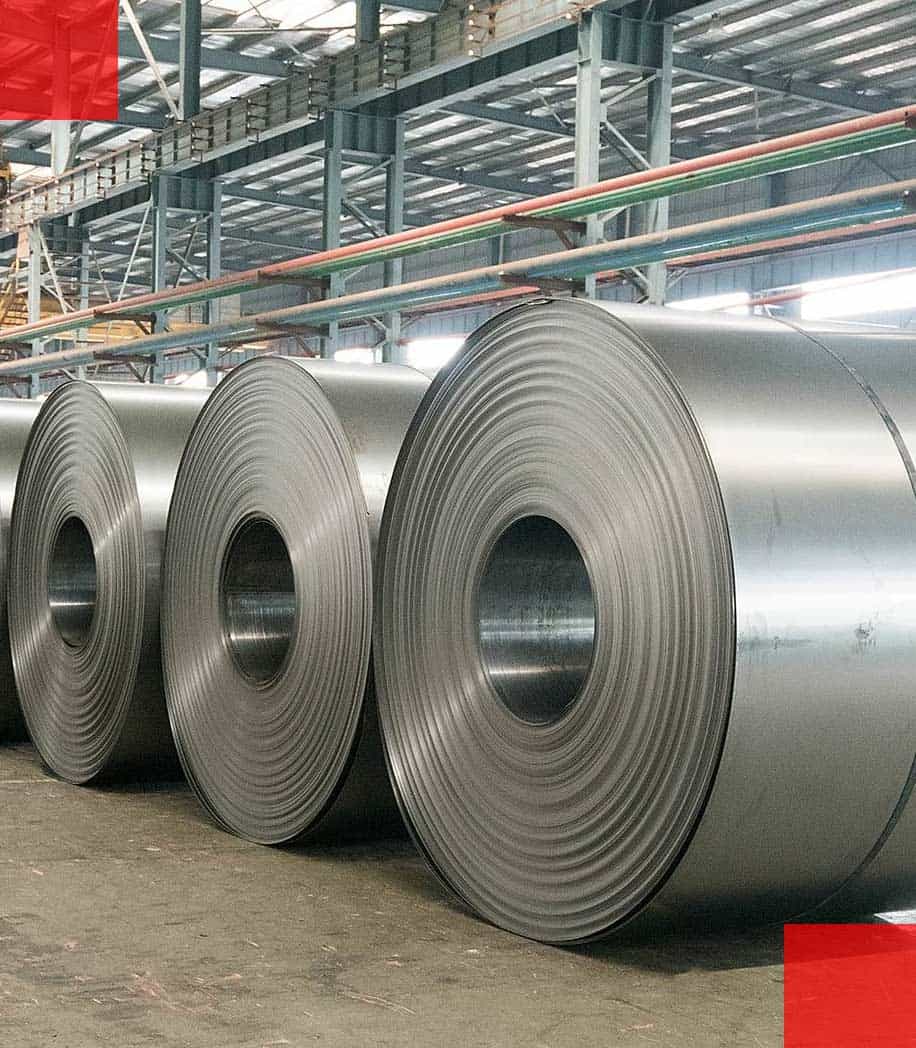

Katariya steel is one of the entrusted manufacturers, distributors, and exporters of SS 904L Sheets, Plates, and Coil (UNS N08904). All types of sheets, plates, and coils of SS 904L are easily available in Katariya steel for business purposes. Very little composition of carbon in Alloy 904L makes it resistant to sensitization through welding, which prevents intergranular corrosion. It also has excellent formability, weldability, toughness and is non-magnetic in all conditions. Alloy 904L (UNS N08904) is resistant to crevice corrosion and stress corrosion cracking as nickel is present in a high amount in its composition. It has a maximum of 28 percent of nickel and a maximum of 0.02 percent carbon in its composition.

Grade 904L stainless steel is soft, glowing, and has corrosion resistance equal to most super duplex stainless steel across a huge range of applications. Any standard method can be used to machine these types of steel plates and sheets. The structural stability of grade 904L (UNS N08904) collapses at high temperatures approximately above 400 degrees C yet it has good oxidation resistance. Applications of Grade 904L SS are acid and piping systems, pollution control equipment, heat exchangers, Seawater cooling devices, bleaching systems, fertilizer production equipment, utility scrubber assemblies, etc. As the alloying of molybdenum and nickel is in large amounts in SS 904L grade, it performs better than other austenitic stainless steel.

SS 904L Sheets, Stainless Steel 904L Plate, Stainless Steel 904L Coils, SS 904L Plates, UNS N08904 Sheets, ASTM A240 TP904L Stainless Steel Plate, Stainless Steel 904L CR Plates, 904L Stainless Steel Sheets, Stainless Steel 904L Sheets Supplier in Mumbai, India.

In order to harden alloy 904 stainless steel, it can be solution heat-treated at 1090 to 1175°C followed by the process of rapid cooling. Stainless steels of grade 904L are high purity steels with low sulphur content. Delivery of products on assured time, availability of in-demand products, and quality service are considered our top priorities. KATARIYA STEEL leads the market and continues to provide elite service to our clients by providing Stainless Steel 904L (UNS N08904) Sheet, Plate, and Coil at reasonable market value.

Stainless Steel 904L Sheets, SS 904L Cold Rolled Coils, 1.4539 Plates, Stainless 904L HR Plate, ASME SA240 TP904L Sheets, SS 904L Coils, 904L Stainless Steel Coils, Stainless Steel 904L Plates Stockist in India.

Specification For SS 904L Sheets / Plates / Coils

Specification ASTM A240 / ASME SA240
Thickness 0.3 mm to 120 mm
Width 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Surface Finish No.1, 2B, BA, 8K Mirror, Hairline, satin (Met with Plastic Coated) Embossed, brush, No.4, HL, matt, pvc etc.
Value added services for Sheets Waterjet cutting, Plasma cutting, Laser cutting, Bending and mechanical processing, edge preparation, welding, sawing and shearing
Thickness 0.3 mm to 120 mm
Length 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Sheets Hardness Half Hard, Quarter Hard, Soft, Hard, Spring Hard
Value Added Service Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.
Form Coils, Foils, Rolls, Strip, Flats, Blank (Circle), Ring (Flange)

Equivalent Grades Of Stainless Steel 904L Sheets / Plates / Coils

STANDARD WERKSTOFF NR. UNS JIS BS KS AFNOR EN
SS 904L 1.4539 N08904 SUS 904L 904S13 STS 317J5L Z2 NCDU 25-20 X1NiCrMoCu25-20-5

SS 904L Sheets / Plates / Coils Chemical Composition

Grade C Mn Si P S Cr Mo Ni Cu
SS 904L 0.020 max 2.00 max 1.00 max 0.040 max 0.030 max 19.00 – 23.00 4.00 – 5.00 max 23.00 – 28.00 1.00 – 2.00

904L SS Sheets / Plates / Coils Mechanical Properties

Grade Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
SS 904L 7.95 g/cm3 1350 °C (2460 °F) Psi – 71000 , MPa – 490 Psi – 32000 , MPa – 220 35 %

Ready Stock Of Stainless Steel 904L Sheets / Plates / Coils Supplier

  • Stainless Steel 904L BA Finish Coils
  • Stainless Steel 904L Embossed Sheet
  • 904L Stainless Steel Sheet and ASTM A240 Plate/ Coils
  • 904L Stainless Steel Plasma Cutting Plate
  • Austenitic Stainless Steel 904L Plates
  • Austenitic Stainless Steel 904L Sheets Sizes
  • Jindal Steel 904L Plates
  • 904L Stainless Steel 2D Finish Plates
  • Stainless Steel 904L Plate Thickness Tolerance Chart
  • Stainless Steel 904L Sheet Thickness Tolerance
  • Check 904L Stainless Steel Sheets / Plates Sizes
  • 904L Stainless Steel BA Mirror Finish Sheet
  • SS 1.4539 Industrial Polished Sheets
  • Wide Range of Stainless Steel Gr.904L Coils
  • SS 904L No 4 Mirror Finish Sheets
  • Stainless Steel 904L Matt Finish Sheets
  • 904L Stainless Steel Slitting Coils
  • Check 904L SS Plates Sizes
  • 904L SS Coils Grades Chart Pdf
  • Grades 904L Stainless Steel Sheets
  • 904L Stainless Steel Plates Standard
  • Jindal Stainless Steel 904L Sheets

Stainless Steel 904L Sheets / Plates Thickness Chart

Stainless Steel Gauge Chart*
Gauge
Number		 Inches MM
8 .17187 4.365
9 .15625 3.968
10 .14062 3.571
11 .125 3.175
12 .10937 2.778
14 .07812 1.984
16 .0625 1.587
18 .050 1.270
20 .0375 .9525
22 .03125 .7937
24 .025 .635
26 .01875 .476
28 .01562 .396
30 .0125 .3175

Stainless Steel 904L Sheets / Plates Weight / Size

WEIGHT PER STAINLESS STEEL SHEET :
THICKNESS IN MM SIZE IN MM WEIGHT KG/M2
2000 X 1000 2500 X 1250 3000 X 1500
0.18 2.88 – – 1.44
0.20 3.20 – – 1.60
0.22 3.52 – – 1.76
0.24 3.84 – – 1.92
0.27 4.32 – – 2.16
0.28 4.48 – – 2.24
0.32 5.12 – – 2.56
0.38 6.08 – – 3.04
0.44 7.04 11.00 – 3.52
0.50 8.00 12.50 – 4.00
0.56 8.96 14.00 – 4.48
0.63 10.08 15.75 – 5.04
0.75 12.00 18.75 – 6.00
0.88 14.08 22.00 – 7.04
1.00 16.00 25.00 36.00 8.00
.1.13 18.08 28.25 40.00 9.04
1.25 20.00 31.25 45.00 10.00
1.38 22.03 34.50 50.00 72.00
1.50 24.00 37.50 54.00 12.00
1.75 28.00 43.75 63.00 14.00
2.00 32.00 50.00 72.00 16.00
2.25 36.00 56.25 81.00 18.00
2.50 40.00 62.50 90.00 20.00
2.75 44.00 68.75 99.00 22.00
3.00 48.00 75.00 108.00 24.00
3.25 52.00 81.25 117.00 26.00
3.50 56.00 87.50 126.00 28.00
3.75 60.00 93.75 135.00 30.00
4.00 64.00 100.00 144.00 32.00
4.25 68.00 106.25 153.00 34.00
4.50 72.00 112.50 162.00 36.00
5.00 80.00 125.00 180.00 40.00
5.50 88.00 137.50 198.00 44.00
6.00 96.00 150.00 216.00 48.00
6.50 104.00 162.50 234.00 52.00
7.00 112.00 175.00 252.00 56.00
7.50 120.00 187.50 270.00 60.00
8.00 128.00 200.00 288.00 64.00

Stainless Steel 904L Sheets / Plates Thickness Tolerance

Thickness
in. (mm)		Sheet / Plates Width
36 (914.4)
in. (mm		48 (1,219)
in. (mm)
0.017–0.030 (0.43–0.76)0.0015 (0.038)0.002 (0.051)
0.031–0.041 (0.79–1.04)0.002 (0.051)0.003 (0.076)
0.042–0.059 (1.1–1.5)0.003 (0.076)0.004 (0.10)
0.060–0.073 (1.5–1.9)0.003 (0.076)0.0045 (0.11)
0.074–0.084 (1.9–2.1)0.004 (0.10)0.0055 (0.14)
0.085–0.099 (2.2–2.5)0.004 (0.10)0.006 (0.15)
0.100–0.115 (2.5–2.9)0.005 (0.13)0.007 (0.18)
0.116–0.131 (2.9–3.3)0.005 (0.13)0.0075 (0.19)
0.132–0.146 (3.4–3.7)0.006 (0.15)0.009 (0.23)
0.147–0.187 (3.7–4.7)0.007 (0.18)0.0105 (0.2

904L Stainless Steel Coils Stock

Coil/Coil Type
Sizes
Availability
ASTM A240 Stainless Steel 904L Coil
0.4mm
√
ASTM A240 Stainless Steel 904L Coil
0.5mm
√
ASTM A240 Stainless Steel 904L Coil
0.8mm
√
ASTM A240 Stainless Steel 904L Coil
1mm
√
ASTM A240 Stainless Steel 904L Coil
1.2mm
√
ASTM A240 Stainless Steel 904L Coil
1.6mm
√
ASTM A240 Stainless Steel 904L Coil
2mm
√
ASTM A240 Stainless Steel 904L Coil
3mm
√
ASTM A240 Stainless Steel 904L Coil
4mm
√
Stainless Steel 904L ASTM A240 Coil
5mm
√
ASTM A240 Stainless Steel 904L Coil
6mm
√
ASTM A240 Stainless Steel 904L Coil
8mm
√
ASTM A240 Stainless Steel 904L Coil
10mm
√
ASTM A240 Stainless Steel 904L Coil
12mm
√
ASTM A240 Stainless Steel 904L Coil
16mm
√
ASTM A240 Stainless Steel 904L Coil
20mm
√
ASTM A240 Stainless Steel 904L Coil
25mm
√

Cold Rolled Coils Descaled ASTM A240, ASME SA 240 TYPE 904L

Steel Coil
Size (mm)
Weight per Coil (Kg)
Size(mm)
Weight per Coil (Kg)
Stainless Steel 904L Coil
4000 x 2000 x 2.0
136.0
3000 x 1500 x 5.0
191.0
Stainless Steel 904L Coil
4000 x 2000 x 3.0
204.0
4000 x 2000 x 5.0
340.0
Stainless Steel 904L Coil
2500 x 1250 x 4.0
106.0
2500 x 1250 x 6.0
159.0
Stainless Steel 904L Coil
3000 x 1500 x 4.0
153.0
3000 x 1500 x 6.0
230.0
Stainless Steel 904L Coil
4000 x 2000 x 4.0
272.0
4000 x 2000 x 6.0
408.0
Stainless Steel 904L Coil
2500 x 1250 x 5.0
133.0

Stainless Steel 904L Coils 1D Finish

Steel Coil
Size (mm)
Weight per Coil (kg)
Size (mm)
Weight per Coil (kg)
Stainless Steel 904L Coil
2000 x 1000 x 3.0
51.0
4000 x 2000 x 6.0
408.0
Stainless Steel 904L Coil
2500 x 1250 x 3.0
79.7
2500 x 1250 x 8.0
213.0
Stainless Steel 904L Coil
3000 x 1500 x 3.0
115.0
3000 x 1500 x 8.0
306.0
Stainless Steel 904L Coil
2000 x 1000 x 4.0
68.0
4000 x 2000 x 8.0
544.0
Stainless Steel 904L Coil
2500 x 1250 x 4.0
106.0
2500 x 1250 x 10.0
266.0
Stainless Steel 904L Coil
3000 x 1500 x 4.0
153.0
3000 x 1500 x 10.0
383.0
Stainless Steel 904L Coil
2000 x 1000 x 5.0
85.0
4000 x 1500 x 10.0
510.0
Stainless Steel 904L Coil
2500 x 1250 x 5.0
133.0
4000 x 2000 x 10.0
680.0
Stainless Steel 904L Coil
3000 x 1500 x 5.0
191.0
2500 x 1250 x 12.0
319.0
Stainless Steel 904L Coil
4000 x 2000 x 5.0
340.0
3000 x 1500 x 12.0
459.0
Stainless Steel 904L Coil
2000 x 1000 x 6.0
102.0
4000 x 1500 x 12.0
612.0
Stainless Steel 904L Coil
2500 x 1250 x 6.0
159.0
4000 x 2000 x 12.0
816.0
Stainless Steel 904L Coil
3000 x 1500 x 6.0
230.0
