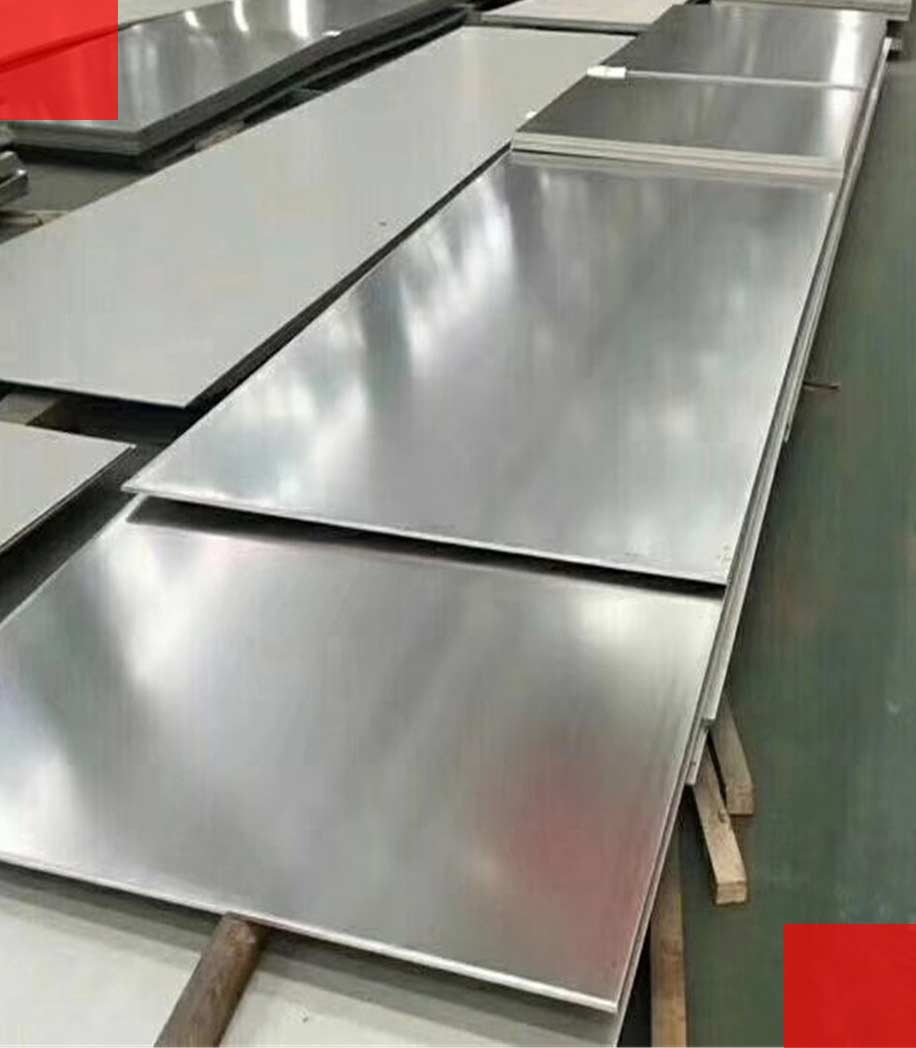

Monel 400 / K400 Sheets / Plates & Coils Manufacturer

International Impex India is a well-known steel manufacturing company, It builds an embarking presence in the steel industry with its progressing work year after year. We at International Impex India produce Monel 400 sheets, plates, and coils. The monel grade 400 can be cold worked or tempered to improve its properties, Monel 400 Coils are delivered in annealed form as standard. Monel 400 Plates are widely used during piping. Alloy 400 Coils are characterized by excellent general corrosion resistance, excellent weldability, and temperate to elevated potency.

Alloy 400 Plates are difficult to machine because they work-harden during the machining process. Monel Alloy 400 Sheets, Plates, and Coils, where it is the responsibility of our group members to inspect these products for any type of finishing defect, achieving the utmost client satisfaction. Monel 400 Sheets are commonly used in fastners, valves, marine engineering, shafts, pumps, chemical processing types of equipment, and hydrocarbon. It comes under the sizes of 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm. The thickness of monel 400 sheets, plate, and coil is 0.1 mm to 12 mm.

Monel Alloy K400 Sheet, Monel 400 Sheets, Monel K400 Plate, Monel Alloy K400 Coils, Monel 400 Plates, UNS N04400 Sheets, Monel 400 Sheet Suppliers, Monel K400 Coils, Monel Alloy 400 Sheets Supplier in Mumbai, India.

The industry that utilizes the monel 400 sheet, plate and coil are Off-Shore Oil Drilling Companies, Power Generation, Petrochemicals, Gas Processing, Specialty Chemicals, Pharmaceuticals, Pharmaceutical Equipment, Chemical Equipment, Sea Water Equipment, Heat Exchangers, Condensers, Pulp and Paper Industry.

Every product at International Impex India goes through a critical process to ensure that the goodness of the product is maintained. We not only ensure quality but are highly leaned towards establishing customer satisfaction by the end of every service we give. Customization of the monel 400 sheet, plate, and coils are available at International Impex India. International Impex India are popular in the market not only for their quality but also for the price range that it offers.

Monel K400 Plates, Monel K400 Sheets, Monel 400 Plate Supplier, 2.4360 Plates, Monel K400 HR Plate, Monel 400 Coils, ASME SB 127 K400 Monel Coils, Monel K400 Plates Stockist in India.

Specification For Monel 400 / K400 Sheets / Plates / Coils

Specification ASTM B127 / ASME SB127
Thickness Plate 0125″ to 5.00″ / Sheets 008″ to .0125″
Sheet / Plates Width 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Sheet / Plates Length 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Sheets Hardness Half Hard, Quarter Hard, Soft, Hard, Spring Hard
Plate / Sheets Size 15NB to 150NB In
Tempers Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard
Coils Thickness 0.3 mm to 120 mm
Coils Length AS PER CUSTOMER’S REQUIREMENT
Form Sheets, Plates, Coils, Strips, Circle, Ring, Disc, Foils
Value Added Service Cladding, Heat Treatment, Annealed, Pickling, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.

Equivalent Grades Of Monel 400 / K400 Sheets / Plates / Coils

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Monel 400 / K400 2.4360 N04400 NW 4400 NA 13 МНЖМц 28-2,5-1,5 NU-30M NiCu30Fe

Monel 400 / K400 Sheets / Plates / Coils Chemical Composition

Grade C Mn Si S Cu Fe Ni
Monel 400 / K400 0.30 max 2.00 max 0.50 max 0.024 max 28.00 – 34.00 2.50 max 63.00 min

400 / K400 Monel Sheets / Plates / Coils Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Monel 400 / K400 8.8 g/cm3 1350 °C (2460 °F) Psi – 80,000 , MPa – 550 Psi – 35,000 , MPa – 240 40 %

Ready Stock Of Monel 400 / K400 Sheets / Plates / Coils Supplier

  • Type of Monel 400 Sheets
  • 400 Monel Plasma Cutting Plate
  • K400 Monel Sheet and ASTM B127 Plate/ Coils
  • 400 Monel Plates
  • Monel® Alloy 400 Plates
  • Alloy 400 Plate Thickness Tolerance Chart
  • Monel 400 Embossed Sheet
  • Alloy 400 Plates
  • 400 Monel Slitting Coils
  • NW 4400 Plates
  • Monel 2.4360 Coils
  • Monel 400 Custom Plates
  • Monel 2.4360 Sheets
  • Monel 400 Sheets
  • 400 Monel Plates Sheets
  • Alloy K400 Sheets
  • Alloy 400 Sheet Thickness Tolerance
  • 400 Monel Sheets
  • Monel 400 Coils
  • Monel Alloy 400 Plates
  • Check 400 Monel Sheets / Plates Sizes
  • Monel Gr.400 Coils
  • Alloy 2.4360 Industrial Sheets
  • Monel Grade K400 Coils
  • Wide Range of Monel Gr.400 Coils
  • Grade 400 Monel Sheets
  • Monel 400 Sheets Sizes
  • Monel Alloy N04400 Sheets
  • Monel Gr 400 Sheet
  • Check 400 Monel Plates Sizes
  • Grades 400 Monel Sheets
  • Monel Alloy 400 Sheets
  • UNS N04400 Monel Coils
  • 400 Monel Coils Grades Chart Pdf
  • Alloy K400 Coils
  • 400 Monel Plates Standard
  • Monel 400 Sheet and Plate Weight Chart in kg
  • Monel 400 Plates
  • Monel Alloy 400 Flat Strips
  • Nickel Alloy 400 Plates

Monel 400 / K400 Sheets / Plates Thickness Chart

Monel Gauge Chart*
Gauge
Number		 Inches MM
8 .17187 4.365
9 .15625 3.968
10 .14062 3.571
11 .125 3.175
12 .10937 2.778
14 .07812 1.984
16 .0625 1.587
18 .050 1.270
20 .0375 .9525
22 .03125 .7937
24 .025 .635
26 .01875 .476
28 .01562 .396
30 .0125 .3175

Monel 400 / K400 Sheets / Plates Weight / Size

WEIGHT PER MONEL SHEET :
THICKNESS IN MM SIZE IN MM WEIGHT KG/M2
2000 X 1000 2500 X 1250 3000 X 1500
0.18 2.88 – – 1.44
0.20 3.20 – – 1.60
0.22 3.52 – – 1.76
0.24 3.84 – – 1.92
0.27 4.32 – – 2.16
0.28 4.48 – – 2.24
0.32 5.12 – – 2.56
0.38 6.08 – – 3.04
0.44 7.04 11.00 – 3.52
0.50 8.00 12.50 – 4.00
0.56 8.96 14.00 – 4.48
0.63 10.08 15.75 – 5.04
0.75 12.00 18.75 – 6.00
0.88 14.08 22.00 – 7.04
1.00 16.00 25.00 36.00 8.00
.1.13 18.08 28.25 40.00 9.04
1.25 20.00 31.25 45.00 10.00
1.38 22.03 34.50 50.00 72.00
1.50 24.00 37.50 54.00 12.00
1.75 28.00 43.75 63.00 14.00
2.00 32.00 50.00 72.00 16.00
2.25 36.00 56.25 81.00 18.00
2.50 40.00 62.50 90.00 20.00
2.75 44.00 68.75 99.00 22.00
3.00 48.00 75.00 108.00 24.00
3.25 52.00 81.25 117.00 26.00
3.50 56.00 87.50 126.00 28.00
3.75 60.00 93.75 135.00 30.00
4.00 64.00 100.00 144.00 32.00
4.25 68.00 106.25 153.00 34.00
4.50 72.00 112.50 162.00 36.00
5.00 80.00 125.00 180.00 40.00
5.50 88.00 137.50 198.00 44.00
6.00 96.00 150.00 216.00 48.00
6.50 104.00 162.50 234.00 52.00
7.00 112.00 175.00 252.00 56.00
7.50 120.00 187.50 270.00 60.00
8.00 128.00 200.00 288.00 64.00

Monel 400 / K400 Sheets / Plates Thickness Tolerance

Thickness
in. (mm)		Sheet / Plates Width
36 (914.4)
in. (mm		48 (1,219)
in. (mm)
0.017–0.030 (0.43–0.76)0.0015 (0.038)0.002 (0.051)
0.031–0.041 (0.79–1.04)0.002 (0.051)0.003 (0.076)
0.042–0.059 (1.1–1.5)0.003 (0.076)0.004 (0.10)
0.060–0.073 (1.5–1.9)0.003 (0.076)0.0045 (0.11)
0.074–0.084 (1.9–2.1)0.004 (0.10)0.0055 (0.14)
0.085–0.099 (2.2–2.5)0.004 (0.10)0.006 (0.15)
0.100–0.115 (2.5–2.9)0.005 (0.13)0.007 (0.18)
0.116–0.131 (2.9–3.3)0.005 (0.13)0.0075 (0.19)
0.132–0.146 (3.4–3.7)0.006 (0.15)0.009 (0.23)
0.147–0.187 (3.7–4.7)0.007 (0.18)0.0105 (0.2

400 / K400 Monel Coils Stock

Coil/Coil Type
Sizes
Availability
ASTM B127 Monel 400 Coil
0.4mm
√
ASTM B127 Monel 400 Coil
0.5mm
√
ASTM B127 Monel 400 Coil
0.8mm
√
ASTM B127 Monel 400 Coil
1mm
√
ASTM B127 Monel 400 Coil
1.2mm
√
ASTM B127 Monel 400 Coil
1.6mm
√
ASTM B127 Monel 400 Coil
2mm
√
ASTM B127 Monel 400 Coil
3mm
√
ASTM B127 Monel 400 Coil
4mm
√
Monel 400 ASTM B127 Coil
5mm
√
ASTM B127 Monel 400 Coil
6mm
√
ASTM B127 Monel 400 Coil
8mm
√
ASTM B127 Monel 400 Coil
10mm
√
ASTM B127 Monel 400 Coil
12mm
√
ASTM B127 Monel 400 Coil
16mm
√
ASTM B127 Monel 400 Coil
20mm
√
ASTM B127 Monel 400 Coil
25mm
√

Cold Rolled Coils Descaled ASTM B127, ASME SB 127 TYPE 400 / k400

Steel Coil
Size (mm)
Weight per Coil (Kg)
Size(mm)
Weight per Coil (Kg)
Monel 400 Coil
4000 x 2000 x 2.0
136.0
3000 x 1500 x 5.0
191.0
Monel 400 Coil
4000 x 2000 x 3.0
204.0
4000 x 2000 x 5.0
340.0
Monel 400 Coil
2500 x 1250 x 4.0
106.0
2500 x 1250 x 6.0
159.0
Monel 400 Coil
3000 x 1500 x 4.0
153.0
3000 x 1500 x 6.0
230.0
Monel 400 Coil
4000 x 2000 x 4.0
272.0
4000 x 2000 x 6.0
408.0
Monel 400 Coil
2500 x 1250 x 5.0
133.0
