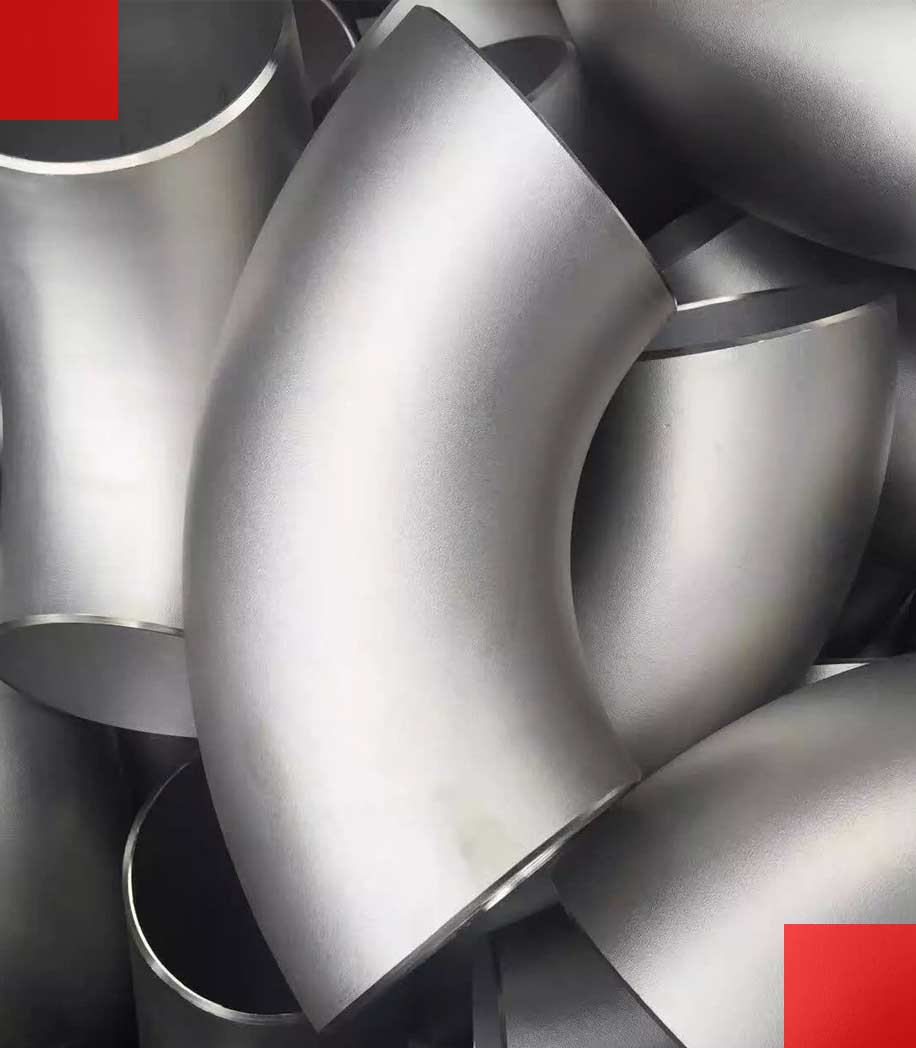

Monel 400 / K400 Pipe Fittings Manufacturer

International Impex India is a leading company in the class of steel industry. We at International Impex India make the best quality Monel 400 pipe fitting. With the advancement in the technology of the current world, it is important to improvise and be flexible as per time when it comes to producing pipe fittings.

The machinability of Monel Alloy 400 Pipe Fittings is tough because it hardens throughout machining. Alloy 400 Weld Pipe Fittings are characterized by sensible general corrosion resistance, good weldability, and moderate to high strength.

Monel 400 Weld Fittings is employed extensively in (for pipe) piping. Though the grade may be tempered or cold worked to extend its properties, Alloy 400 Butt Weld Fittings are provided within the hardened condition as standard.

An extra application space of the fabric is in marine environments and different nonoxidizing chloride solutions. International Impex India Distributors additionally supply these merchandise in tailored sizes and shapes as per the client's requirements.

Monel 400 Buttweld Fittings, UNS N04400 Pipe Fittings, 400 Monel Buttweld Fittings, Monel 400 Seamless Pipe Fittings Stockist, Monel 400 Fittings, Monel Alloy K400 Pipe Fittings, Monel 400 Pipe Fittings Manufacturer In Mumbai, India.

The Monel 400 pipe fittings come in two types of sizes that are convenient to the user i.e. seamless butt weld fittings ½” – 10” and welded butt fittings – 1/2” – 48. Their thickness appears in the range of 6.35mm OD up to 254 mm OD in 0.6 to 20 mm.

We at International Impex India supply our high-quality pipe fittings with all the essential features. We maintain not only the quality of the pipe fittings but also features such as easy operation, leak-free, and tight sealing.

We at International Impex India produce these fittings under the direction of our experienced professionals. Our team of quality testers and consultants is operating onerous to deliver glorious quality Fittings. They're supervising the total method to avoid any defects and errors

For the Monel 400 pipe fitting, we offer the best market price and ensure good quality products like no other steel-making company. International Impex India is the future so come and invest your effort with us and the rest be surely taken care of by us. You create images and we provide you with the same reality that’s what our customer feels like.

Monel 2.4360 Buttweld Fittings, ASME SB366 Monel K400 Buttweld Fittings, ASTM B366 K400 Pipe Fittings, Monel 400 Pipe Elbow, Tee, Cross, Reducer, ANSI B16.9 Monel Alloy K400 Buttweld Fittings, Monel K400 Pipe Fittings Supplier in India.

Specification For Monel 400 / K400 Pipe Fittings

Monel 400 / K400 Pipe Fittings Standard ASTM B366 / ASME SB366
Monel 400 / K400 Pipe Fitting Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Monel 400 / K400 Pipe Fitting Dimensions Size Range Seamless Butt Weld Fittings: 1/2" - 10", Welded Butt Weld Fittings: 1/2" - 48"
Monel 400 / K400 Pipe Fittings Type Seamless / Welded / Fabricated
Monel 400 / K400 Pipe Fittings Schedule Sch 5 TO Sch XXS.
ASTM B366 Monel 400 / K400 Pipe Fittings Thickness 20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc.
Grades Monel 400, K500 Pipe Fittings

Equivalent Grades Of Monel 400 / K400 Pipe Fittings

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Monel 400 2.4360 N04400 NW 4400 NA 13 МНЖМц 28-2,5-1,5 NU-30M NiCu30Fe

Monel 400 / K400 Pipe Fittings Chemical Composition

Grade Ni Fe C Mn Si Cu Al S
Monel 400 63.0 min 1.0 – 2.5 0.3 max 2.0 max 0.5 max 28.0 – 34.0 0.50 max 0.02 max

400/K400 Monel Rod and Wire Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.8 g/cm3 1350 °C (2460 °F) Psi – 80000 , MPa – 550 Psi – 35000 , MPa – 240 40 %

Ready Stock Of Monel 400 / K400 Pipe Fittings Supplier

  • Monel 400 Pipe Fittings
  • Monel 400 Buttweld Equal Cross
  • 400 Monel Pipe Fittings
  • Monel 400 10D Elbow
  • Monel® Alloy 400 Pipe Fittings
  • Alloy 400 Pipe Fittings
  • Monel 400 Weldable 1.5D Elbow
  • 400 Monel 180° LR Return Bend
  • ASTM B366 Monel 400 Lateral Tee
  • Monel 2.4360 Lap joint Stub Ends
  • Monel 400 SR Elbow
  • 400 Monel Alloy Pipe Fittings
  • ASME B16.9 Monel 400 Pipe Nipple
  • Monel® Alloy 400 90° Seamless Elbow
  • Monel® Alloy 400 Welded Lateral Tee
  • Monel 2.4360 Short Radius Elbow
  • Monel 400 Reducing Tee
  • Monel Alloy 400 Pipe Fittings
  • 400 Monel® Alloy Pipe Fittings
  • 400 Monel LR Elbow
  • 400 Monel End Pipe Cap
  • Nickel Alloy 400 Pipe Fittings
  • Monel 400 Barred Tee
  • UNS N04400 Monel Swage Nipple
  • Type 400 Monel Seamless Pipe Fittings
  • Monel Gr 400 Industrial Pipe Fittings
  • Monel 400 Reducing Nipple
  • Monel N04400 Buttweld Fittings

Monel 400 / K400 Pipe Fittings Dimensional Tolerances

(1) Out-of-round is the sum of absolute values of plus and minus tolerance.
(2) The inside diameter at ends and the nominal wall thicknesses are to be specified by the purchaser.
 IN ACCORDANCE WITH ASME B16.9 – B16.28
All Fittings
90°and 45° Ells and Tees Reducers and Lap Joint Stub Caps 180° Returns Angularity Tol
Nominal Pipe Plane Size (NPS) Outside(1) Diameter at Bevel Inside(1) Diameter at End Wall(2) Thickness Centre-to- End Dimension A,B,C,M Overall Length L Overall Length E Centre-to- Centre Dimension O Back-to- Face Dimension K Alignment at Ends U Nominal Pipe SIze Off Angle Q Off Angle P
1/2 TO 2-1/2 +1/16 ±1/32 Not less than 87-1/2% of Normal Thickness ±1/16 ±1/16 ±1/8 ±1/4 ±1/4 ±1/32 12 to 4 1/32 1/16

-1/32






5 to 8 1/16 1/8
3 TO 3-1/2 ±1/16 ±1/16 ±1/16 ±1/16 ±1/8 ±1/4 ±1/4 ±1/32 10 to 12 3/32 3/16
4 ±1/16 ±1/16 ±1/16 ±1/16 ±1/8 ±1/4 ±1/4 ±1/32 14 to 16 3/32 1/4
5 TO 8 +1/32 ±1/16 ±1/16 ±1/16 ±1/4 ±1/4 ±1/4 ±1/32 18 to 24 1/8 3/8

-1/16









10 TO 18 +1/16 ±1/8 ±3/32 ±3/32 ±1/4 ±3/8 ±1/4 ±1/16  All dimensions are in inches

-1/8






20 TO 24 +1/4 ±3/32 ±3/32 ±3/32 ±1/4 ±3/8 ±1/4 ±1/16

-3/32
