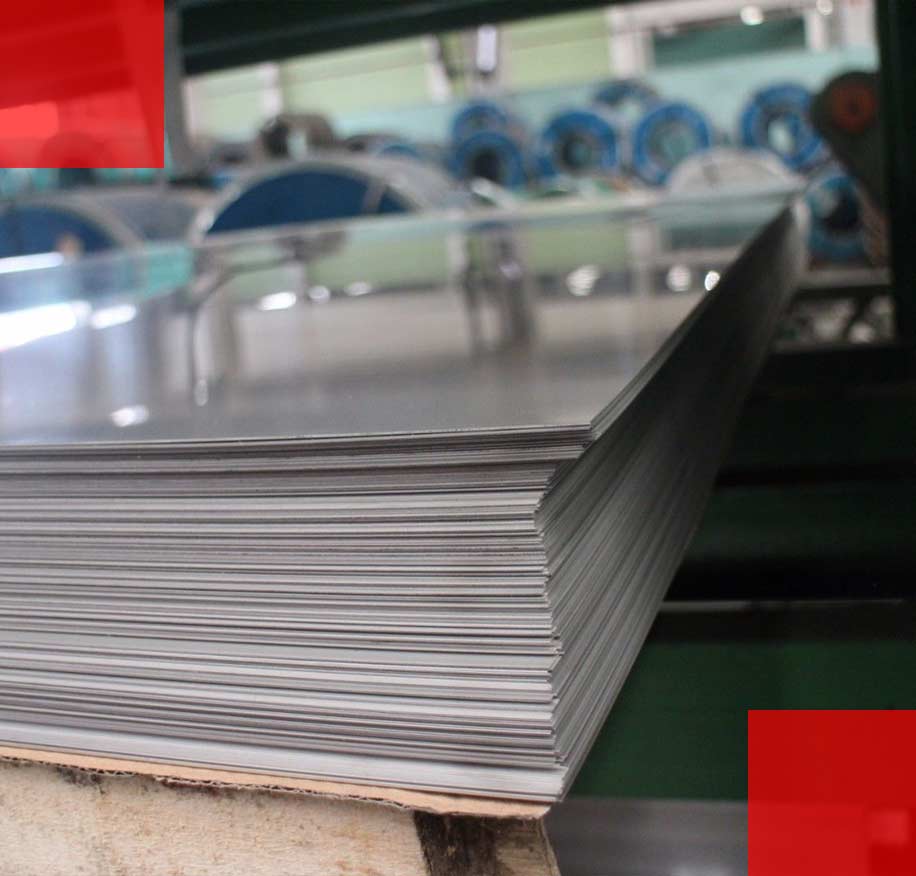

Inconel Sheets / Plates & Coils Manufacturer

Katariya Steel, based in India, is a prominent manufacturer and supplier of Inconel Sheets, Plates, and Coils. Our products are subjected to comprehensive quality checks and testing in order to produce things of industry-standard quality. These items are available in a variety of sizes and can be customized to meet the needs of our customers. We strive to deliver the highest level of customer satisfaction. These sheets, plates, and coils are produced from Inconel grades 600, 625, 718, 800, 800H, and 825.

Through the annealed to extremely cold worked form range, Inconel 600 Sheets, Plates, and Coils exhibit exceptional heat resistance and freedom from stress corrosion or aging. These were intended to withstand service temperatures ranging from cryogenic to 1093 degrees Celsius (2000 Degree F).

Inconel 625 Sheets, Plates, and Coils are very much resistant to an extensive collection of mineral and organic acids. Excellent toughness and strength of Alloy 625 Plates in the cryogenic temperature range to 1093 Degree C (2000 Degree F) are resultant mainly from the hard solution effects of the headstrong metals, molybdenum, and columbium, in a nickel-chromium atmosphere.

Inconel Sheet, Incoloy Alloy Sheets, Inconel Hot Rolled Sheet, Inconel Coil, Inconel® Alloy Sheets, Inconel Plate, ASTM B424 Incoloy Plate, Incoloy CR Plates, Inconel Sheets Supplier in Mumbai, India.

Inconel 718 Sheets, Plates, and Coils are a nickel and chrome superalloy that has high corrosion resistance, able to withstand high pressure, and elevated temperatures (around 700°C). Along with nickel and chromium, it also has niobium, titanium, and micro constituents of other metals. Due to its distinctive properties, it has found application in a wide range of industries, ranging from manufacturing to the aerospace industry.

Inconel 800 Sheets, Plates, and Coils are another nickel-chromium iron alloy that has robust strength at high temperatures, oxidation resistance, and carburization and sulfidation resistance. It is generally used in applications serviced at high temperature and require resistance to oxidation and carburization.

Katariya Steel provides Inconel sheets, plates, and coils at competitive rates.

Incoloy Alloy Plates, Inconel Sheet Plate, Inconel Cold Rolled Coils, Incoloy HR Plate, ASME SB670 Inconel Sheets, Inconel Perforated Sheets, Incoloy Coils, Incoloy Plates Stockist in India.

Specification For Inconel Sheets / Plates / Coils

Specification ASTM B670, B424 / ASME SB 670, SB 424
Thickness Plate 0125″ to 5.00″ / Sheets 008″ to .0125″
Sheet / Plates Width 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Sheet / Plates Length 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Sheets Hardness Half Hard, Quarter Hard, Soft, Hard, Spring Hard
Plate / Sheets Size 15NB to 150NB In
Tempers Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard
Coils Thickness 0.3 mm to 120 mm
Coils Length AS PER CUSTOMER’S REQUIREMENT
Form Sheets, Plates, Coils, Strips, Circle, Ring, Disc, Foils
Value Added Service Cladding, Heat Treatment, Annealed, Pickling, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.

Ready Stock Of Inconel Sheets / Plates / Coils Supplier

  • Incoloy Alloy Sheets
  • Inconel Plates
  • Inconel Sheets Sizes
  • Incoloy Embossed Sheet
  • Inconel Coils
  • Incoloy® Alloy Plates
  • Inconel Plasma Cutting Plate
  • Inconel Sheets
  • Incoloy Custom Plates
  • Inconel Slitting Coils
  • Incoloy Alloy Plate Thickness Tolerance Chart
  • Incoloy Sheet Thickness Tolerance
  • Incoloy Sheets
  • Incoloy Alloy Plates
  • Inconel Sheet and ASTM B670 Plate/ Coils
  • Incoloy Coils Grades Chart Pdf
  • Inconel Sheet and Plate Weight Chart in kg
  • Incoloy Alloy Coils
  • Inconel Plates Standard
  • Wide Range of Inconel Coils
  • Check Inconel Sheets / Plates Sizes
  • Check Inconel Plates Sizes
  • Inconel Alloy Sheets
  • Incoloy Coils
  • Inconel Plates Sheets
  • Type of Incoloy Sheets
  • Incoloy Alloy Flat Strips
  • Incoloy Alloy Industrial Sheets
  • Inconel Plates Price List
  • Incoloy Plate

Inconel Sheets / Plates Thickness Chart

Inconel Gauge Chart*
Gauge
Number		 Inches MM
8 .17187 4.365
9 .15625 3.968
10 .14062 3.571
11 .125 3.175
12 .10937 2.778
14 .07812 1.984
16 .0625 1.587
18 .050 1.270
20 .0375 .9525
22 .03125 .7937
24 .025 .635
26 .01875 .476
28 .01562 .396
30 .0125 .3175

Inconel Sheets / Plates Weight / Size

WEIGHT PER INCOLOY SHEET :
THICKNESS IN MM SIZE IN MM WEIGHT KG/M2
2000 X 1000 2500 X 1250 3000 X 1500
0.18 2.88 – – 1.44
0.20 3.20 – – 1.60
0.22 3.52 – – 1.76
0.24 3.84 – – 1.92
0.27 4.32 – – 2.16
0.28 4.48 – – 2.24
0.32 5.12 – – 2.56
0.38 6.08 – – 3.04
0.44 7.04 11.00 – 3.52
0.50 8.00 12.50 – 4.00
0.56 8.96 14.00 – 4.48
0.63 10.08 15.75 – 5.04
0.75 12.00 18.75 – 6.00
0.88 14.08 22.00 – 7.04
1.00 16.00 25.00 36.00 8.00
.1.13 18.08 28.25 40.00 9.04
1.25 20.00 31.25 45.00 10.00
1.38 22.03 34.50 50.00 72.00
1.50 24.00 37.50 54.00 12.00
1.75 28.00 43.75 63.00 14.00
2.00 32.00 50.00 72.00 16.00
2.25 36.00 56.25 81.00 18.00
2.50 40.00 62.50 90.00 20.00
2.75 44.00 68.75 99.00 22.00
3.00 48.00 75.00 108.00 24.00
3.25 52.00 81.25 117.00 26.00
3.50 56.00 87.50 126.00 28.00
3.75 60.00 93.75 135.00 30.00
4.00 64.00 100.00 144.00 32.00
4.25 68.00 106.25 153.00 34.00
4.50 72.00 112.50 162.00 36.00
5.00 80.00 125.00 180.00 40.00
5.50 88.00 137.50 198.00 44.00
6.00 96.00 150.00 216.00 48.00
6.50 104.00 162.50 234.00 52.00
7.00 112.00 175.00 252.00 56.00
7.50 120.00 187.50 270.00 60.00
8.00 128.00 200.00 288.00 64.00

Inconel Sheets / Plates Thickness Tolerance

Thickness
in. (mm)		Sheet / Plates Width
36 (914.4)
in. (mm		48 (1,219)
in. (mm)
0.017–0.030 (0.43–0.76)0.0015 (0.038)0.002 (0.051)
0.031–0.041 (0.79–1.04)0.002 (0.051)0.003 (0.076)
0.042–0.059 (1.1–1.5)0.003 (0.076)0.004 (0.10)
0.060–0.073 (1.5–1.9)0.003 (0.076)0.0045 (0.11)
0.074–0.084 (1.9–2.1)0.004 (0.10)0.0055 (0.14)
0.085–0.099 (2.2–2.5)0.004 (0.10)0.006 (0.15)
0.100–0.115 (2.5–2.9)0.005 (0.13)0.007 (0.18)
0.116–0.131 (2.9–3.3)0.005 (0.13)0.0075 (0.19)
0.132–0.146 (3.4–3.7)0.006 (0.15)0.009 (0.23)
0.147–0.187 (3.7–4.7)0.007 (0.18)0.0105 (0.2

People also Search for Inconel Sheets / Plates / Coils

ISO Certified Inconel Alloy Plates, Incoloy Alloy Sheets Stockist In Mumbai, Incoloy Alloy Sheets Thickness Chart Pdf, Inconel Alloy Sheets Stockist In Mumbai, Inconel Coils Grade Price List, Inconel Plates Supplier In Mumbai, Incoloy Perforated Sheet Supplier In Mumbai, Inconel Sheets Supplier In Mumbai, Incoloy Coils Wholesale Trader from Mumbai, Inconel Alloy Cold Rolled Plates Dealer In Mumbai, Incoloy® Alloy Sheets Supplier In Mumbai, Incoloy Plates Stockist, Inconel Alloy Plate, Incoloy Alloy Plates Price List Mumbai, Inconel Sheet Manufacturer In India, Inconel® Alloy Plate Stockist In Mumbai, Type Inconel 1/4 Inch Plate, Inconel Plate Supplier In India, Incoloy Foils Stockist In India, Incoloy Alloy Coils Price List In India, Inconel Plates Stockist In India, Incoloy Sheets / Plates Grades Chart, Incoloy Plates, Incoloy Industrial Sheets, Incoloy Coils Supplier In Maharashtra, ASME SB 670 Inconel Industrial Sheets, Incoloy Alloy Sheet & Plate Suppliers In Chennai, Inconel Sheets Supplier In India, Incoloy Sheet Manufacturers, Inconel Alloy Plates / Sheets Packing, Inconel Alloy Shim Sheet Price List In India, Inconel Plate Price List, Incoloy Sheets Stockholder, Inconel® Alloy Coils at Best Price, Inconel Coils Size Chart, Incoloy Slitting Coils, Inconel Alloy Plates Supplier In India, Incoloy Coils Stocks, Inconel® Alloy Plates Stockist In India, Grade Incoloy Coils Suppliers In India, Inconel Alloy Coils Price List India, Incoloy Discs Price List, Inconel Sheets Price, Incoloy Slit Coils Supplier In India, Incoloy Coils Manufacturer In Mumbai, Most Selling Incoloy Sheets, Inconel Plates Supplier In India, Incoloy Sheets Dealer In India, Incoloy Plate Price List In India, ASTM B670 Inconel Coils Price, Incoloy Alloy Sheets Price, Incoloy Alloy Sheets at Best Price, Buy Direct From The Incoloy Plates & Sheets Stockist In India For Prime Quality and Best Price, Incoloy Alloy Circle in Mumbai India, Inconel Sheets / Plates & Coils Stockist In Mumbai India, Incoloy CR Coils Stockist In Mumbai India, Inconel Sheets Exporters In Mumbai, Incoloy Plate size chart, Inconel Plates Specification, Incoloy Strips Suppliers and Stockists, Best Price Of Inconel Plates, Inconel Shim Coils, Inconel Sheets Stockist In India.

Inconel Sheets / Plates / Coils Applications and Uses

Aerospace Industry

Oil & Gas Industry

Petrochemical Industry

Construction Industry

Mining Industry
