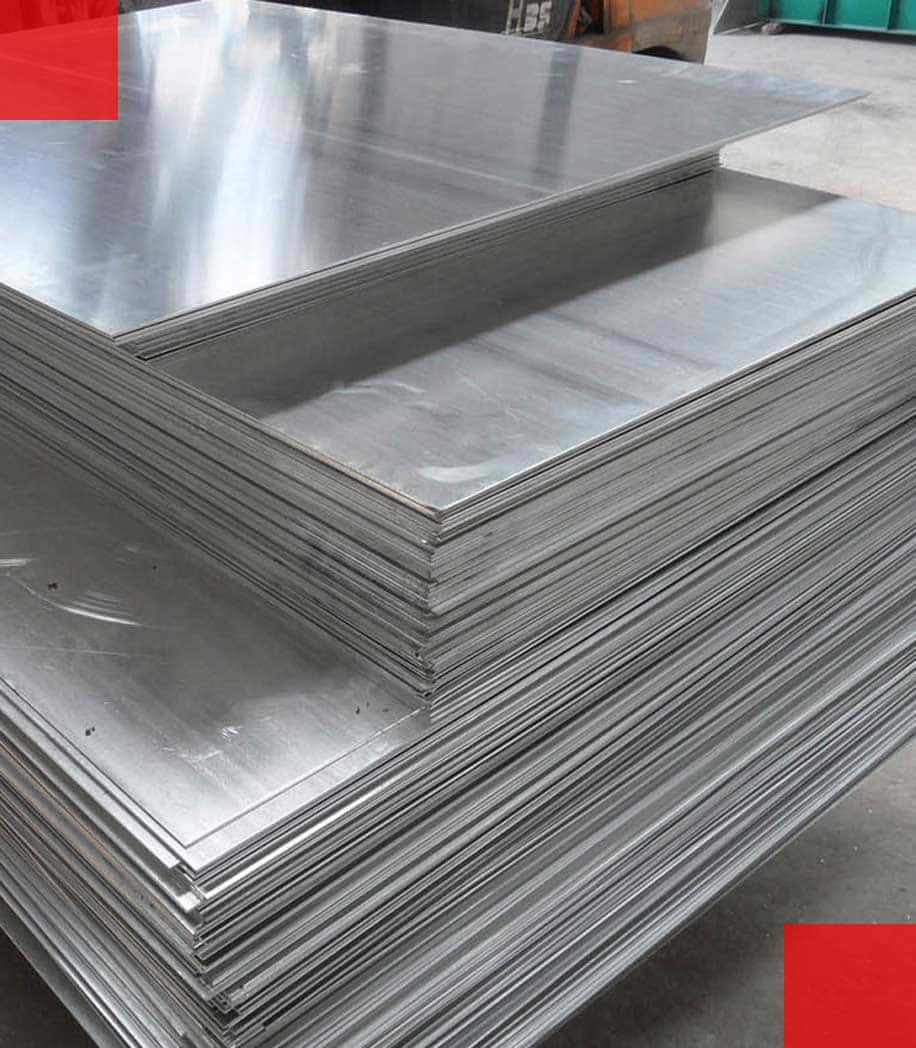

Inconel 718 / 825 Sheets / Plates & Coils Manufacturer

Katariya steel is one of the most trusted manufacturers, distributors, and exporters of Inconel 718 & 825 Sheet, Plate, Coil in the entire market. Inconel grade 718 sheets and plates have good resistance to oxidation and corrosion. Alloy grade 718 sheets and coils contain 0.08 percent of max carbon and Alloy grade 825 sheets and coils contain 0.05 percent of max carbon in their composition. Incoloy 718/825 GRADE Products by Katariya steel are processed and scrutinized by standardizing processes and therefore possess properties such as good machinability, weldability, and ductility.

Incoloy 718 plates exhibit excellent tensile and impact strength. Incoloy grade 825 sheets, plates, and coils are immune to reducing & oxidizing acids, stress corrosion cracking very resistant to sulfuric and phosphoric acids. Inconel 718 is a nickel-base precipitation hardening alloy designed for high yield strength, tensile strength, and creep-rupture properties at temperatures up to 1300ºF (705ºC). 825 Incoloy Plates are made with high-quality grade raw materials and so have good mechanical properties from moderate to high temperatures. A few important applications of Inconel grade 718 & grade 825 are gas turbine operations, jet engines, chemical process equipment, hot vessels for food, water, and seawater, nuclear fuel reprocessing, Marine exhaust systems, and radioactive waste handling.

Inconel 718 Sheet, Incoloy Alloy 825 Sheets, 718 Inconel Hot Rolled Sheet, Alloy 825 Plates, Inconel 718 Plate, Incoloy 825 Coils, 718 Inconel Sheets, UNS N08825 Sheets, ASTM B424 825 Incoloy Plate, Nickel Alloy 718 Coils, Incoloy 825 CR Plates, Inconel 718 Sheets Supplier in Mumbai, India.

Incoloy grade 718 sheets and coils can be easily processed under annealing and age hardening conditions and also have high strength and resilience to chlorides, stress corrosion, and sulfide stress cracking. Incoloy 825 Sheets & Plates are not recommended for an appliance at media where excellent creep-rupture properties are required. Inconel 718 plates Endure high temperatures up to 1300 F (704 C) and have a tensile value as high as 230 Ksi (1590 MPa). Katariya steel strives to create supreme quality products and provide top-notch customer service to our clients all over the world.

Inconel Alloy 718 Plates, Inconel 825 Sheet Plate, Inconel 718 Cold Rolled Coils, 2.4668 Plates, Inconel® Alloy 718 Sheets, Incoloy 825 HR Plate, ASME SB670 718 Inconel Sheets, Inconel 825 Perforated Sheets, Alloy 718 Coils, 825 Inconel Coils, Incoloy 825 Plates Stockist in India.

Specification For Inconel 718 / 825 Sheets / Plates / Coils

Specification ASTM B670, B424 / ASME SB 670, SB 424
Thickness Plate 0125″ to 5.00″ / Sheets 008″ to .0125″
Sheet / Plates Width 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Sheet / Plates Length 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Sheets Hardness Half Hard, Quarter Hard, Soft, Hard, Spring Hard
Plate / Sheets Size 15NB to 150NB In
Tempers Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard
Coils Thickness 0.3 mm to 120 mm
Coils Length AS PER CUSTOMER’S REQUIREMENT
Form Sheets, Plates, Coils, Strips, Circle, Ring, Disc, Foils
Value Added Service Cladding, Heat Treatment, Annealed, Pickling, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.

Equivalent Grades Of Inconel 718 / 825 Sheets / Plates / Coils

STANDARD UNS WNR. AFNOR EN JIS BS GOST OR
Inconel 718 N07718 2.4668 – – NCF 718 – – –
Incoloy 825 N08825 2.4858 NFE30C20DUM NiCr 21 Mo NCF 825 NA 16 ЭП703 XH38BT

Inconel 718 / 825 Sheets / Plates / Coils Chemical Composition

Grade C Mn Si S Cu Fe Ni Cr Al Ti
Inconel 718 0.08 max 0.35 max 0.35 max 0.015 max 0.30 max – 50.00 – 55.00 17.00 – 21.00 _ _
Incoloy 825 0.05 max 1.00 max 0.5 max 0.03 max 1.50 – 3.00 22.00 min 38.00 – 46.00 19.50 – 23.50 0.02 max 0.06 – 1.20

718 / 825 Inconel Sheets / Plates / Coils Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Inconel 718 8.2 g/cm3 1350 °C (2460 °F) Psi – 1,35,000 , MPa – 930 Psi – 75,000 , MPa – 482 45 %
Incoloy 825 8.14 g/cm3 1400 °C (2550 °F) Psi – 80,000 , MPa – 550 Psi – 32,000 , MPa – 220 30 %

Ready Stock Of Inconel 718 / 825 Sheets / Plates / Coils

  • Alloy 825 Sheets
  • 718 Inconel Plates
  • Inconel 718 Sheets Sizes
  • Incoloy 825 Embossed Sheet
  • Inconel 2.4668 Coils
  • Incoloy® Alloy 825 Plates
  • 718 Inconel Plasma Cutting Plate
  • Inconel 2.4858 Sheets
  • Incoloy 825 Custom Plates
  • 718 Inconel Slitting Coils
  • Alloy 718 Plate Thickness Tolerance Chart
  • Alloy 825 Sheet Thickness Tolerance
  • Inconel 718 Sheets
  • Incoloy 825 Coils
  • 718 Inconel Plates Sheets
  • Type of Incoloy 825 Sheets
  • 825 Incoloy Sheets
  • Inconel 718 Plates
  • NCF 718 Plates
  • Incoloy Alloy 825 Plates
  • 718 Inconel Sheet and ASTM B670 Plate/ Coils
  • 825 Incoloy Coils Grades Chart Pdf
  • Inconel Gr.718 Coils
  • Inconel 718 Sheet and Plate Weight Chart in kg
  • Incoloy Gr 825 Sheet
  • Alloy 718 Coils
  • Incoloy Grade 825 Coils
  • 718 Inconel Plates Standard
  • Wide Range of Inconel Gr.718 Coils
  • Alloy 825 Plates
  • Check 718 Inconel Sheets / Plates Sizes
  • 718 Inconel Sheets
  • Check 718 Inconel Plates Sizes
  • UNS N08825 Inconel Coils
  • Grades 718 Inconel Sheets
  • Inconel Alloy N07718 Sheets
  • Incoloy Alloy 825 Flat Strips
  • Incoloy Alloy 825 Sheets
  • Alloy 2.4668 Industrial Sheets
  • Grade 718 Inconel Sheets
  • Nickel Alloy 825 Plates
  • 825 Incoloy Plate

Inconel 718 / 825 Sheets / Plates Thickness Chart

Inconel Gauge Chart*
Gauge
Number		 Inches MM
8 .17187 4.365
9 .15625 3.968
10 .14062 3.571
11 .125 3.175
12 .10937 2.778
14 .07812 1.984
16 .0625 1.587
18 .050 1.270
20 .0375 .9525
22 .03125 .7937
24 .025 .635
26 .01875 .476
28 .01562 .396
30 .0125 .3175

Inconel 718 / 825 Sheets / Plates Weight / Size

WEIGHT PER INCOLOY SHEET :
THICKNESS IN MM SIZE IN MM WEIGHT KG/M2
2000 X 1000 2500 X 1250 3000 X 1500
0.18 2.88 – – 1.44
0.20 3.20 – – 1.60
0.22 3.52 – – 1.76
0.24 3.84 – – 1.92
0.27 4.32 – – 2.16
0.28 4.48 – – 2.24
0.32 5.12 – – 2.56
0.38 6.08 – – 3.04
0.44 7.04 11.00 – 3.52
0.50 8.00 12.50 – 4.00
0.56 8.96 14.00 – 4.48
0.63 10.08 15.75 – 5.04
0.75 12.00 18.75 – 6.00
0.88 14.08 22.00 – 7.04
1.00 16.00 25.00 36.00 8.00
.1.13 18.08 28.25 40.00 9.04
1.25 20.00 31.25 45.00 10.00
1.38 22.03 34.50 50.00 72.00
1.50 24.00 37.50 54.00 12.00
1.75 28.00 43.75 63.00 14.00
2.00 32.00 50.00 72.00 16.00
2.25 36.00 56.25 81.00 18.00
2.50 40.00 62.50 90.00 20.00
2.75 44.00 68.75 99.00 22.00
3.00 48.00 75.00 108.00 24.00
3.25 52.00 81.25 117.00 26.00
3.50 56.00 87.50 126.00 28.00
3.75 60.00 93.75 135.00 30.00
4.00 64.00 100.00 144.00 32.00
4.25 68.00 106.25 153.00 34.00
4.50 72.00 112.50 162.00 36.00
5.00 80.00 125.00 180.00 40.00
5.50 88.00 137.50 198.00 44.00
6.00 96.00 150.00 216.00 48.00
6.50 104.00 162.50 234.00 52.00
7.00 112.00 175.00 252.00 56.00
7.50 120.00 187.50 270.00 60.00
8.00 128.00 200.00 288.00 64.00

Inconel 718 / 825 Sheets / Plates Thickness Tolerance

Thickness
in. (mm)		Sheet / Plates Width
36 (914.4)
in. (mm		48 (1,219)
in. (mm)
0.017–0.030 (0.43–0.76)0.0015 (0.038)0.002 (0.051)
0.031–0.041 (0.79–1.04)0.002 (0.051)0.003 (0.076)
0.042–0.059 (1.1–1.5)0.003 (0.076)0.004 (0.10)
0.060–0.073 (1.5–1.9)0.003 (0.076)0.0045 (0.11)
0.074–0.084 (1.9–2.1)0.004 (0.10)0.0055 (0.14)
0.085–0.099 (2.2–2.5)0.004 (0.10)0.006 (0.15)
0.100–0.115 (2.5–2.9)0.005 (0.13)0.007 (0.18)
0.116–0.131 (2.9–3.3)0.005 (0.13)0.0075 (0.19)
0.132–0.146 (3.4–3.7)0.006 (0.15)0.009 (0.23)
0.147–0.187 (3.7–4.7)0.007 (0.18)0.0105 (0.2

Cold Rolled Coils Descaled ASTM B670, B424 / ASME SB 670, SB 424 TYPE 718 / 825

Steel Coil
Size (mm)
Weight per Coil (Kg)
Size(mm)
Weight per Coil (Kg)
Inconel 718 / 825 Coil
4000 x 2000 x 2.0
136.0
3000 x 1500 x 5.0
191.0
Inconel 718 / 825 Coil
4000 x 2000 x 3.0
204.0
4000 x 2000 x 5.0
340.0
Inconel 718 / 825 Coil
2500 x 1250 x 4.0
106.0
2500 x 1250 x 6.0
159.0
Inconel 718 / 825 Coil
3000 x 1500 x 4.0
153.0
3000 x 1500 x 6.0
230.0
Inconel 718 / 825 Coil
4000 x 2000 x 4.0
272.0
4000 x 2000 x 6.0
408.0
Inconel 718 / 825 Coil
2500 x 1250 x 5.0
133.0
