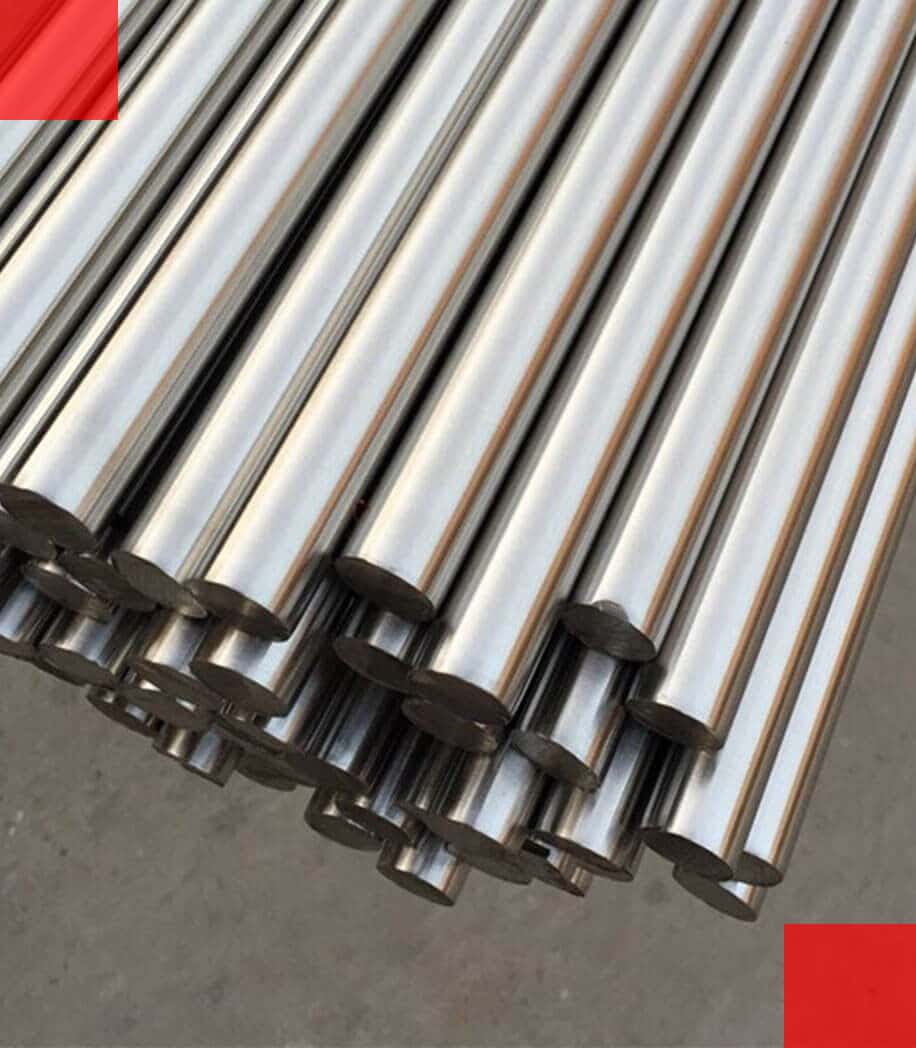

Incoloy 800/800H/800HT Rod & Wire Supplier

Katariya steel manufactures the finest quality Inconel 800, 800H, and 800HT Rod, Wires. We manufacture, distribute and export 800,800H rods and wires made with top-class raw material and so our products possess properties like the quality of stress-rupture and creep characteristics in the 593 Deg C to 982 Deg C temp ranges. Incoloy grade 800 wires have a maximum carbon content of around 0.1 percent, Incoloy grade 800H rods contain maximum carbon content of around 0.05-0.1 percent, and grade 800HT rods contain maximum carbon content of around 0.06-0.1. Incoloy grade 800HT wires are nickel-iron-chromium alloy, and also a modified version of alloy 800. Alloy 800 HT has a high creep-rupture.

The high nickel content in Incoloy 800H/800HT grade rod’s composition makes the alloys highly resistant to both carburizations and to embrittlement from precipitation of the sigma phase. Incoloy Grade 800HT rods have high tensile and yield strength after the annealing process is carried out. Nickel Incoloy 800H/HT is recommended for high-temperature structural applications. Some of the major applications of grade 800/800H/800HT are Chemical and petrochemical processing, Ethylene furnace quench boilers, furnace components, and equipment, pigtails, outlet manifolds, and quenching-system piping. As Alloy 800 rods contain high chromium contents, they have good resilience to many sulfur-containing atmospheres at elevated temperatures.

Incoloy 800 Rods, Alloy 800H Rods, Incoloy 800 Bars, Alloy 800 Wires, Incoloy Alloy 800HT Wires, Alloy 1.4876 Rods, ASTM B408 800 Incoloy Alloy Rods, Incoloy 800HT Wire, UNS N08800 Round Rods, Nickel Alloy 800 Wire, Incoloy 800H Rod Wires, Incoloy 800 Industrial Wire Supplier in Mumbai, India.

Shielded metal-arc welding, gas metal-arc welding, and submerged-arc welding methods can be used to weld Incoloy grade 800HT rods. 800H alloy wires can only be hardened by cold working. Generally, alloy 800 has superior mechanical properties at room temperature and during short-time exposure to elevated temperatures. Due to high chromium and nickel contents, INCOLOY alloy 800H and 800HT rods & wires have extraordinary immunity to oxidation. Katariya steel supplies elite grade 800H and 800HT rods passed through product verification tests as per national standards. We strive to maintain the purity of metals and authenticity of our products to offer the best results to our customers.

Nickel Alloy 800 Rods, ASME SB408 800H Round Bars, Incoloy 800 Round Rod, Incoloy Alloy 800H Spring Wire, 800HT Incoloy Wire Bobbin, Incoloy 1.4958 Wire Rope, Incoloy Alloy 800 Spool Wire, Incoloy 800H Cold Drawn Bars, Alloy 800HT Forged Bars, Incoloy 800 Rods Stockist in India.

Specification For Incoloy 800/800H/800HT Rods

Incoloy 800/800H/800HT Rods Standards ASTM B408 / ASME SB408
Incoloy 800/800H/800HT Round Rod Size 3mm~ 800mm
Incoloy 800/800H/800HT Square Rod Size 4mm* 4mm ~100mm* 100mm
Incoloy 800/800H/800HT Flat Rod Size 2mm ~ 100mm
Inconel 800/800H/800HT Hex Rod Size 2mm ~ 100mm
Thickness 50 mm to 2000 mm Long
Length 1 To 6 Meters, Custom Cut Length
Form Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging etc.

Specification For Incoloy 800/800H/800HT Wire

Incoloy 800/800H/800HT Wire Standards ASTM B408/ ASME SB408
Inconel 800/800H/800HT Wire Dimensions ANSI/AWCI – 01 -1992 and ASTM E 2016-11 and RRW 360
Incoloy 800/800H/800HT Wire Length Cut Lengths: 0.125" to 72" (No Limit on Spooled Lengths)
Incoloy 800/800H/800HT Wire Diameter 0.0004" to 0.040"
10 microns to 1.0 mm
Other Sizes on Request
Offered in a wide range of packages including Spool
Reel
Coil
Bobbin
Carrier
Custom packaging provided from as low as 1lb to 200lb tapered plastics

Equivalent Grades Of Incoloy 800/800H/800HT Rod & Wire

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN OR
Incoloy 800 1.4876 N08800 NCF 800 NA 15 ЭИ670 Z8NC32-21 X10NiCrAlTi32-20 XH32T
Incoloy 800H 1.4958 / 1.4876 N08810 NCF 800H NA 15(H) ЭИ670 Z8NC33-21 X5NiCrAlTi31-20 XH32T
Incoloy 800HT 1.4859 / 1.4876 N08811 NCF 800HT NA 15(HT) ЭИ670 – X8NiCrAlTi32-21 XH32T

Incoloy 800/800H/800HT Rod & Wire Chemical Composition

Grade C Mn Si S Cu Fe Ni Cr Al Ti
Incoloy 800 0.10 max 1.50 max 1.00 max 0.015 max 0.75 max 39.50 min 30.00 – 35.00 19.00 – 23.00 0.15 – 0.60 0.15 – 0.60
Incoloy 800H 0.05 – 0.10 1.50 max 1.00 max 0.015 max 0.75 max 39.50 min 30.00 – 35.00 19.00 – 23.00 0.15 – 0.60 0.15 – 0.60
Incoloy 800HT 0.06 – 0.10 1.50 max 1.00 max 0.015 max 0.75 max 39.50 min 30.00 – 35.00 19.00 – 23.00 0.15 – 0.60 0.15 – 0.60

Incoloy 800/800H/800HT Rod & Wire Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
7.94 g/cm3 1385 °C (2525 °F) Psi – 75,000 , MPa – 520 Psi – 30,000 , MPa – 205 30 %

Ready Stock Of Incoloy 800/800H/800HT Rod & Wire Supplier

  • Inconel Alloy 800HT Half Round Rods
  • Incoloy 800H Rods
  • 800 Incoloy Wire Bobbin
  • Inconel 800HT Rod
  • Incoloy 800HT Rod
  • Incoloy® Alloy 800H Rectangular Rods
  • Inconel 1.4958 Hexagon Bar
  • Incoloy Alloy 800HT Filler Wires
  • Inconel 800H Hot Rolled Rods
  • Inconel 800 Cold Drawn Rods
  • Nickel Alloy 800 Forged Rod
  • ASTM B408 800 Inconel Bright Rod
  • 800 Inconel Wire Mesh
  • Incoloy® Alloy 800HT Cold Heading Wires
  • Alloy 800 Spring Wires
  • Incoloy 800H Bright Wires
  • Incoloy 1.4859 Wire Rope
  • Incoloy® Alloy 800H Spool Wires
  • 800 Incoloy Alloy Lock Crimp Woven Wire
  • Inconel Gr.800 Welding Wires
  • Grades 800 Inconel T-Rod
  • Inconel Alloy Gr 800H Industrial Wires
  • Incoloy 800H Cold Drawn Wire
  • Incoloy 800HT Hardened & Tempered Rods
  • 800 Inconel Knitted Wires Mesh
  • Incoloy N08810 Hollow Rods
  • 800 Inconel Triangle Rod
  • Alloy 800H Crimped Wires Mesh
  • Inconel® Alloy 800 Precision Ground Rods
  • 800 Inconel Continuous Cast Bar
  • Inconel Alloy 800 Cold Drawn Wires
  • Incoloy 1.4876 Triangle Rod
  • Inconel Alloy Grade 800HT Flat Rod
  • UNS N08811 Twill Square Woven Wires

Incoloy 800/800H/800HT Rod Sizes & Tolerance

TypeSIZES (mm)SIZES (Inches)ISO Tolerance
Cold Drawn and Ground10.00 – 75.005/6" – 2.50"h8-h9-h10-h11
Peeled and Polished40.00 – 150.001.50" – 6.00"h11, h11-DIN 1013
Peeled and Ground20.00 – 50.003/4″ – 2.00"h9-h10-h11
Cold Drawn and Polish3.00 – 75.001/8" – 3.00"h8-h9-h10-h11

Inconel Alloy Round Rods Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).

5.045.0
6.050.0
7.055.0
8.060.0
9.065.0
10.070.0
12.075.0
16.080.0
20.090.0
25.0100.0
30.0130.0
35.0160.0
40.0200.0

Incoloy 800/800H/800HT Weight Chart PDF Wires Weight Chart

Diameter, mm Weight, kg/m Cross-section area, mm2
5,5 0,187 23,8
6 0,222 28,3
6,5 0,260 33,2
7 0,302 38,5
8 0,395 50,3
9 0,499 63,6
10 0,617 78,5
11 0,746 95,0
12 0,888 113,0
14 1,210 154,0
