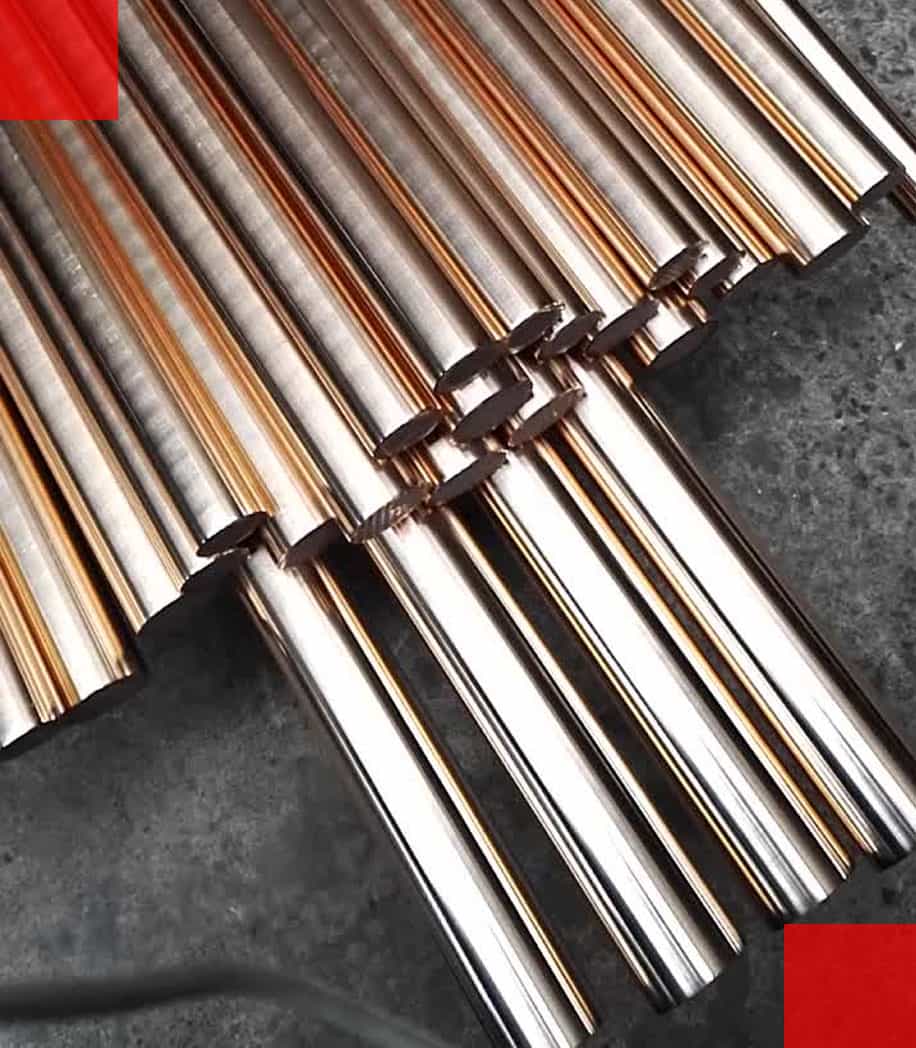

About Copper Nickel 70/30 Rod & Wire
Specification For Copper Nickel 70/30 Rod & Wire
Equivalent Grades Of Copper Nickel 70/30 Rod & Wire
Various Types of Copper Nickel 70/30 Rods and Wires
Copper Nickel 70/30 Rod & Wire Chemical Composition
Copper Nickel 70/30 Rod and Wire Mechanical Properties
Ready Stock Of Copper Nickel 70/30 Rod & Wire
People also Search for Copper Nickel 70/30 Rod & Wire
Copper Nickel 70/30 Rod & Wire Applications and Uses
Domestic Supply of Copper Nickel 70/30 Rods & Wires
International Export of Copper Nickel 70/30 Rod & Wire

Katariya steel is one of the widely trusted manufacturers, distributors, and exporters of Copper Nickel 70/30 Rod Wire. We provide the finest quality of cupronickel alloy products at affordable market rates. CUPRONICKEL 70/30 alloy has 70% copper and 30% nickel in its composition. Copper-nickel alloy 70/30 (UNS C71500) has good corrosion resistance and strength and it can be improved by the addition of manganese, iron, niobium, and or chromium. Alloy grade 70/30 rod has great resistance to sea water-related corrosion due to the presence of significant amounts of manganese and iron. Copper-nickel alloys (UNS C71500) are normally annealed at temperatures between 649 and 816°C (1200 and 1500°F).

Cupronickel alloys have a good cold working capacity and are hot-formed in an extraordinary manner. The soluble nature of nickel in copper provides the copper-nickel alloys with a single-phase alpha structure. The machinability rating of copper-nickel 70/30 alloys is 20% and it also has excellent resistance to erosion. Cupronickel alloy rod wires have a very low magnetic permeability and can be welded using gas shielded arc welding, spot welding, and oxyacetylene welding processes. Temperatures between 927 and 1038°C (1700 and 1900°F) are suitable for forging the 70/30 copper-nickel alloy rod wires. Some of the major applications of copper-nickel alloy rod wire are Hydraulic lines, Seawater pipework, power plants and ships, Pumps, Fish cages for aquaculture, Valves, sheathing, and fittings for ship hulls, etc.

Copper Nickel 70-30 Rods, UNS C71500 Round Rods, 70/30 Copper Nickel Wire, CuNi 70/30 Filler Wire, ASTM B151 70/30 Cupro Nickel Rod Supplier, 2.0882 Welding Rod, Copper Nickel 70/30 Round Bar, Copper Nickel 70/30 Bar & Rod Supplier in Mumbai, India.

Copper-nickel 70/30 alloy has inherent resistance to macro-fouling, superb ductility when annealed, good thermal conductivity & ductility at cryogenic temperatures, and beneficial antimicrobial touch surface properties. Due to its ductility, cupronickel alloy rod wire can be readily fabricated in a wide variety of product forms and fittings. Katariya steel focuses on elite quality production of cupronickel rod wires and other products for our foreign as well as local business clients.

Copper Nickel 70/30 Forged Rods Exporter, Cupro Nickel 70 30 Spool Wire, Copper Nickel 70/30 Rod Stockist, Cu Ni C71500 Wire Rope Stockholder, 70/30 Copper Nickel Wire Mesh, ASTM B151 Cupro Nickel 70/30 Cold Rolled Rod Stockist in India.

Specification For Copper Nickel 70/30 Rods

Copper Nickel 70/30 Rods Standards	ASTM B151 / ASME SB151
Copper Nickel 70/30 Round Rod Size	3mm~ 800mm
Copper Nickel 70/30 Square Rod Size	4mm* 4mm ~100mm* 100mm
Copper Nickel 70/30 Flat Rod Size	2mm ~ 100mm
Copper Nickel 70/30 Hex Rod Size	2mm ~ 100mm
Thickness	50 mm to 2000 mm Long
Length	1 To 6 Meters, Custom Cut Length
Form	Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging etc.

Specification For Copper Nickel 70/30 Wire

Copper Nickel 70/30 Wire Dimensions	ANSI/AWCI – 01 -1992 and ASTM E 2016-11 and RRW 360
Copper Nickel 70/30 Wire Length	Cut Lengths: 0.125" to 72" (No Limit on Spooled Lengths)
Copper Nickel 70/30 Wire Diameter	0.0004" to 0.040" 10 microns to 1.0 mm Other Sizes on Request
Offered in a wide range of packages including	Spool Reel Coil Bobbin Carrier Custom packaging provided from as low as 1lb to 200lb tapered plastics

Equivalent Grades Of Copper Nickel 70 / 30 PFlanges

STANDARD	WERKSTOFF NR.	UNS
Copper Nickel 70 / 30	2.0882	C71500

Various Types of Copper Nickel 70/30 Rods and Wires

Cupro Nickel 70/30 Round Rod

Copper Nickel 70/30 Hot Rolled Round Rod
ASTM B151 70/30 Cupro Nickel Round Rods
ASME SB151 Copper Nickel 70/30 Round Rod
70/30 Cupro Nickel Cold Rolled Round Bars
Copper Nickel 2.0882 Round Rod
Copper Nickel 70/30 Round Rod
UNS C71500 Round Rods
Copper Nickel C71500 Round Rods
Cu Ni 70/30 Round Rod
Cu-Ni 70/30 Round Rod

Cupro Nickel 70/30 Square Rod

70/30 Copper Nickel Cold Rolled Square Bars
Copper Nickel 2.0882 Square Rod
Copper Nickel C71500 Square Rods
ASTM B151 70/30 Cupro Nickel Square Rods
Copper Nickel 70/30 Square Rod
Copper Nickel 70/30 Hot Rolled Square Bar
Cu-Ni 70/30 Square Rod
Cu Ni 70/30 Square Rod
ASME SB151 Copper Nickel 70/30 Square Rod
UNS C71500 Square Rods

Cupro Nickel 70/30 Hex Rods

Copper Nickel C71500 Hex Rods
UNS C71500 Hex Rods
CuNi 70/30 Hex Rod
Cu Ni 70/30 Hex Rod
ASTM B151 70/30 Cupro Nickel Hex Rods
ASME SB151 Copper Nickel 70/30 Hex Rod
Copper Nickel 2.0882 Hex Rod
Copper Nickel 70/30 Hex Rod
Copper Nickel 70/30 Hot Rolled Hexagon Rod
70/30 Copper Nickel Cold Rolled Hexagon Bars

Cupro Nickel 70/30 Wire Bobbin

70/30 Cupro Nickel Wire Bobbins
Copper Nickel C71500 Wire Bobbins
CuNi 70/30 Wire Bobbins
Cu-Ni 70/30 Wire Bobbins
Copper Nickel 2.0882 Wire Bobbin
UNS C7070/30 Cupro Nickel Wire Bobbins
Copper Nickel 70/30 Wire Bobbin

Cupro Nickel 70/30 Wire Coil

70/30 Cupro Nickel Wire Coils
UNS C71500 Wire Coils
CuNi 70/30 Wire Coil
70/30 Copper Nickel Wire Coils
Copper Nickel C71500 Wire Coils
Cu Ni 70/30 Wire Coils
Copper Nickel 2.0882 Wire Coil
Copper Nickel 70/30 Wire Coil

Cupro Nickel 70/30 Wire Mesh

70/30 Cupro Nickel Wire Mesh
Cu Ni 70/30 Wire Mesh
Copper Nickel 2.0882 Wire Mesh
Copper Nickel C71500 Wire Mesh
Copper Nickel 70/30 Wire Mesh
UNS C71500 Wire Mesh
Cu-Ni 70/30 Wire Mesh
CuNi 70/30 Wire Mesh

Copper Nickel 70/30 Rod & Wire Chemical Composition

Grade	Cu	Pb	Fe	Zn	Ni	Mn
Copper Nickel 70/30	65.0 min	.05 max	0.4-1.0	1 max	29-33	1 max

Copper Nickel 70/30 Rod & Wire Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
0.323 lb/in3 at 68 F	2260 F	50000 psi	20000 psi	30 %

Ready Stock Of Copper Nickel 70/30 Rod & Wire Supplier

70/30 Cupro Nickel Wire Bobbin
Cupro Nickel 70/30 Filler Wires
70/30 Cupro Nickel Wire Mesh
70/30 Copper Nickel Rods
CuNi 70/30 Cold Heading Wires
Cupro Nickel 70/30 Rods
Copper Nickel 70/30 Spring Wires
Copper Nickel 2.0882 Hexagon Bar
Cupro Nickel 2.0882 Wire Rope
UNS C71500 Twill Square Woven Wires
Cu-Ni 70/30 Rectangular Rods
Cupro Nickel 70-30 Forged Rod
Cu Ni 70/30 Half Round Rods
ASTM B151 70/30 Copper Nickel Bright Rod
70/30 Copper Nickel Wire Coils
Copper Nickel 70/30 Hot Rolled Rods
Copper Nickel 70/30 Cold Drawn Rods
70/30 Cupro Nickel Bright Wires

70/30 Copper Nickel Triangle Rod
C71500 Copper Nickel Wires
70/30 Copper Nickel Wires
Cupro Nickel 70-30 Cold Drawn Wire
Cu Ni 70/30 Industrial Wires
Copper Nickel 70/30 Rods
Copper Nickel 70-30 Spool Wires D
Copper Nickel 70/30 Hardened & Tempered Rods
Cupro Nickel 70/30 Wires
Copper Nickel 70/30 Welding Wires
Grades 70/30 Cupro Nickel Wires
Cupro Nickel 2.0882 Triangle Rod
70/30 Cupro Nickel Bars
Copper Nickel 70/30 Crimped Wires Mesh
Cupro Nickel 70/30 Precision Ground Rods
Cu-Ni 70/30 Knitted Wires Mesh
CuNi 70/30 Cold Drawn Wires
70/30 Cupro Nickel Lock Crimp Woven Wire

Copper Nickel 70/30 Rod Sizes & Tolerance

Type	SIZES (mm)	SIZES (Inches)	ISO Tolerance
Cold Drawn and Ground	10.00 – 75.00	5/6" – 2.50"	h8-h9-h10-h11
Peeled and Polished	40.00 – 150.00	1.50" – 6.00"	h11, h11-DIN 1013
Peeled and Ground	20.00 – 50.00	3/4″ – 2.00"	h9-h10-h11
Cold Drawn and Polish	3.00 – 75.00	1/8" – 3.00"	h8-h9-h10-h11

Copper Nickel Round Rods Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).

5.0	45.0
6.0	50.0
7.0	55.0
8.0	60.0
9.0	65.0
10.0	70.0
12.0	75.0
16.0	80.0
20.0	90.0
25.0	100.0
30.0	130.0
35.0	160.0
40.0	200.0

Copper Nickel 70/30 Weight Chart PDF / Copper Nickel Wires Weight Chart

Diameter, mm	Weight, kg/m	Cross-section area, mm²
5,5	0,187	23,8
6	0,222	28,3
6,5	0,260	33,2
7	0,302	38,5
8	0,395	50,3
9	0,499	63,6
10	0,617	78,5
11	0,746	95,0
12	0,888	113,0
14	1,210	154,0
