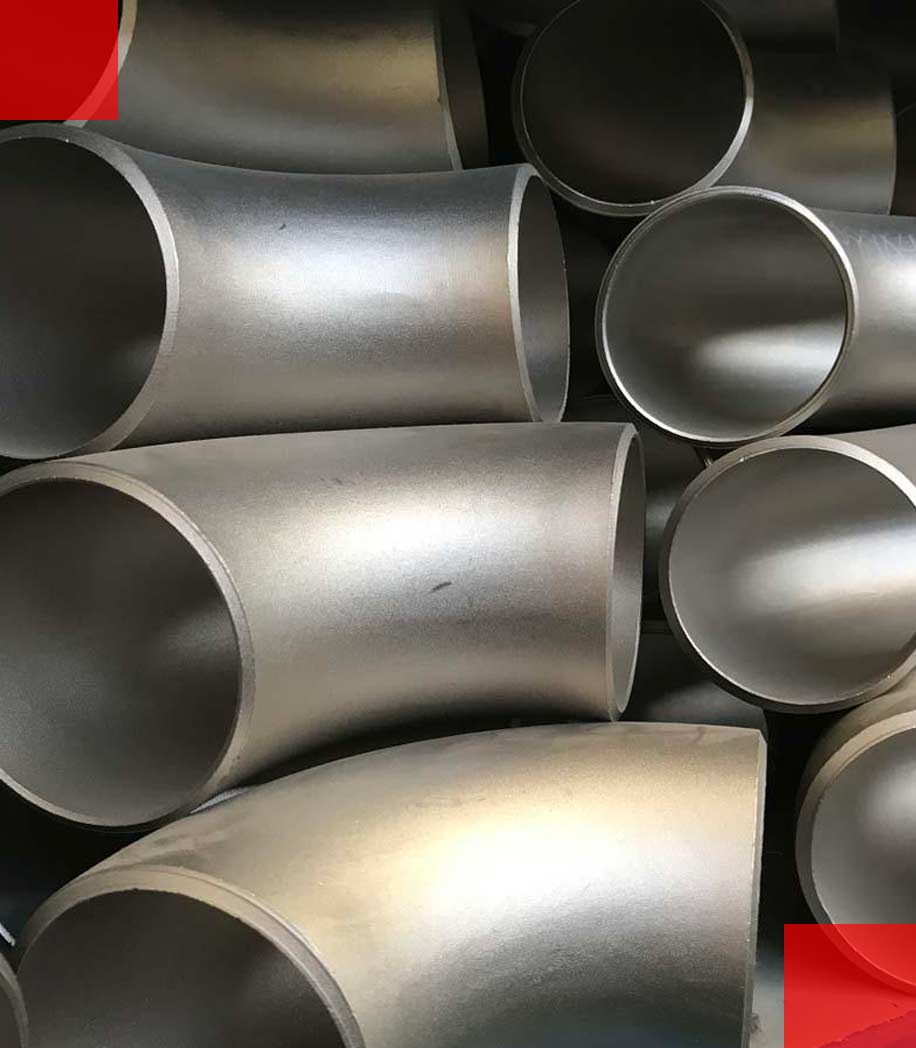

Alloy 20 Pipe Fittings Manufacturer

Katariya Steel Distributors is a remarkable manufacturer, exporter and supplier of Alloy 20 Pipe Fittings. We manufacture our products with premium quality raw materials that are available in the market. We are one of the best suppliers of Alloy 20 pipe fittings at industrially leading rates due to our vast experience and knowledge in this industry.

Alloy 20 pipe fittings are an austenitic type of material. These pipe fittings are made up of elements like nickel, chromium and iron. They have exceptional resistance to corrosion in chemical environments containing sulfuric acid and many other harsh media. This alloy is stabilized with niobium to resist intergranular corrosion. Alloy 20 pipe fittings have good resistance to sulfuric acid along with phosphoric acid, nitric acid and aqueous salt solutions.

Alloy 20 Pipe Fittings, Alloy 20 Buttweld Fittings, Alloy 20 Seamless Fittings, Alloy 20 Buttweld Pipe Fitting, Alloy 20 Welded Fittings, ASME SB366 Alloy 20 Pipe Fittings Supplier, Alloy 20 Pipe Fittings Manufacturer in Mumbai, India.

Alloy 20 pipe fittings are an advantageous option when chloride stress corrosion cracking is an issue as it is known to resist pitting and crevice corrosion. Alloy 20 can be formed by either hot-working or cold-working using traditional methods. Hot forged material should be used to heat between 2100 Degree F and 2250 Degree F with careful temperature control ensuring that the material does not fall below 1800 Degree F prior to forging. After hot working, anneal the material by heating to 1725 Degree F and 1850 Degree F for a minimum of 30 minutes per inch of thickness followed by water quench.

These pipe fittings are very popular and highly demanded in multiple industries like food processing, pump and valve parts, storage tanks, mixing tanks, petrochemical industry, refining, fasteners and fittings, chemical processing industry, pharmaceutical industry and many more. We perform several tests on our products to ensure safety and quality. Alloy 20 pipe fittings are cost-effective and suitable for a number of industries due to their amazing features, properties and characteristics.

Alloy 20 Reducer, Alloy 20 Buttweld Elbow, UNS N08020 Tee, 2.4660 Pipe Bend, Alloy 20 Sub End Exporter, Alloy 20 Cross Stockist, ASME SB366 Alloy 20 Pipe Fitting Supplier in India.

Specification For Alloy 20 Pipe Fittings

Alloy 20 Pipe Fittings Standard ASTM B366 / ASME SB366
Alloy 20 Pipe Fitting Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Alloy 20 Pipe Fitting Dimensions Size Range Seamless Butt Weld Fittings: 1/2" - 10", Welded Butt Weld Fittings: 1/2" - 48"
Alloy 20 Pipe Fittings Type Seamless / Welded / Fabricated
Alloy 20 Pipe Fittings Schedule Sch 5 TO Sch XXS.
ASTM B366 Alloy 20 Pipe Fittings Thickness 20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc.

Equivalent Grades Of Alloy 20 Pipe Fittings

STANDARD WERKSTOFF NR. UNS EN AFNOR
Alloy 20 2.4660 N08020 NiCr20CuMo Z2NCUD31-20AZ

Alloy 20 Pipe Fittings Chemical Composition

Grade C Mn Si S Cu Ni Cr Fe Mo P
Alloy 20 0.07 max 2.00 max 1.00 max 0.035 max 3.00 – 4.00 32.00 – 38.00 19.00 – 21.00 29.85 min* 2.00 – 3.00 0.045 max

Alloy 20 Pipe Fittings Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Alloy 20 8.1 g/cm3 1443 °C (2430 °F) Psi -80,000, MPa -551 Psi – 35,000, MPa – 241 30 %

Ready Stock Of Alloy 20 Pipe Fittings Supplier

  • Alloy 20 SR Elbow
  • Alloy 20CB3® Weldable 1.5D Elbow
  • Alloy 20 Eccentric Reducer at Best Price
  • Alloy 20 Pipe Fittings
  • Inconel® Alloy 20 90° Seamless Elbow
  • Alloy 20 10D Elbow
  • ASTM B366 Alloy 20 Lateral Tee
  • Incoloy 20 Pipe Fittings
  • Alloy 2.4660 Lap joint Stub Ends
  • ASME B16.9 Alloy 20 Pipe Nipple
  • Carpenter 20 Pipe Fittings
  • Alloy 20 180° LR Return Bend
  • Alloy N08020 Buttweld Fittings
  • Alloy 20 Reducing Tee
  • Inconel Gr 20 Industrial Pipe Fittings
  • Incoloy® Alloy 20 Welded Lateral Tee
  • Alloy 2.4660 Short Radius Elbow
  • UNS N08020 Swage Nipple
  • Alloy 20 Buttweld Equal Cross
  • Type Alloy 20 Seamless Pipe Fittings
  • Alloy 20 LR Elbow
  • Alloy 20 End Pipe Cap
  • Alloy 20 Reducing Nipple
  • Alloy 20 Barred Tee

Alloy 20 Pipe Fittings Dimensional Tolerances

(1) Out-of-round is the sum of absolute values of plus and minus tolerance.
(2) The inside diameter at ends and the nominal wall thicknesses are to be specified by the purchaser.
 IN ACCORDANCE WITH ASME B16.9 – B16.28
All Fittings
90°and 45° Ells and Tees Reducers and Lap Joint Stub Caps 180° Returns Angularity Tol
Nominal Pipe Plane Size (NPS) Outside(1) Diameter at Bevel Inside(1) Diameter at End Wall(2) Thickness Centre-to- End Dimension A,B,C,M Overall Length L Overall Length E Centre-to- Centre Dimension O Back-to- Face Dimension K Alignment at Ends U Nominal Pipe SIze Off Angle Q Off Angle P
1/2 TO 2-1/2 +1/16 ±1/32 Not less than 87-1/2% of Normal Thickness ±1/16 ±1/16 ±1/8 ±1/4 ±1/4 ±1/32 12 to 4 1/32 1/16

-1/32






5 to 8 1/16 1/8
3 TO 3-1/2 ±1/16 ±1/16 ±1/16 ±1/16 ±1/8 ±1/4 ±1/4 ±1/32 10 to 12 3/32 3/16
4 ±1/16 ±1/16 ±1/16 ±1/16 ±1/8 ±1/4 ±1/4 ±1/32 14 to 16 3/32 1/4
5 TO 8 +1/32 ±1/16 ±1/16 ±1/16 ±1/4 ±1/4 ±1/4 ±1/32 18 to 24 1/8 3/8

-1/16









10 TO 18 +1/16 ±1/8 ±3/32 ±3/32 ±1/4 ±3/8 ±1/4 ±1/16  All dimensions are in inches

-1/8






20 TO 24 +1/4 ±3/32 ±3/32 ±3/32 ±1/4 ±3/8 ±1/4 ±1/16

-3/32
