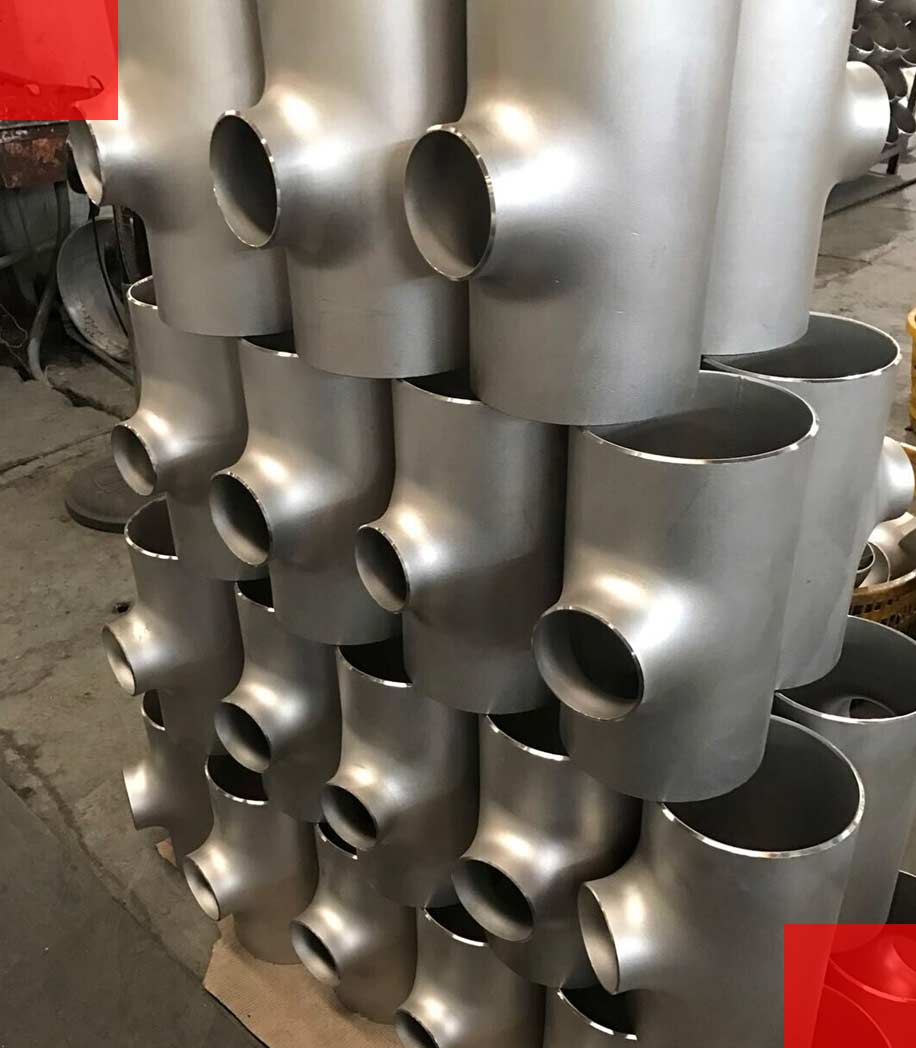

Stainless Steel 317L Pipe Fittings Manufacturer

  • Home
  • Stainless Steel

Katariya Steel is a renowned supplier and distributor of Stainless Steel 317L Pipe Fittings. We strive to provide premium quality products at the best prices to our customers. We are trusted by our clients throughout the world for our top-quality Stainless Steel 317L Pipe Fittings.

When compared to standard chromium-nickel austenitic stainless steels like Stainless Steel 304 Pipe Fittings, Stainless Steel 317L Pipe Fittings are made from a molybdenum-bearing austenitic stainless steel with considerably higher chemical resistance. Stainless Steel 317L Pipe Fittings have great chloride pitting and general corrosion resistance due to the high quantities of these elements. Furthermore, at extreme temperatures, Stainless Steel 317L Pipe Fitting has stronger creep, stress-to-rupture, and tensile strength than ordinary stainless steel. It's an "L" grade with a low carbon content that resists sensitization during welding and other thermal processes. In severely corrosive conditions containing sulphurous media, chlorides, and other halides, the alloy provides better resistance than 316L. In a wide range of substances, Alloy 317L offers exceptional corrosion resistance. Sulfuric acid, acidic chlorine, and phosphoric acid are all resistant to attack. It's utilised to deal with heated organic and fatty acids, which are common in food and pharmaceutical processing.

Stainless Steel 317L Buttweld Fittings, 317L Stainless Steel Buttweld Fittings, 317L SS Butt weld Fittings, Stainless Steel 317L Pipe Fittings, Stainless Steel 317L Seamless Pipe Fittings Stockist, UNS S31703 Pipe Fittings, Stainless Steel 317L Pipe Fittings Manufacturer In Mumbai, India.

We are stockholders of a wide range of Stainless Steel 317L Pipe Fitting like Stainless Steel 317L Elbow, Stainless Steel 317L Reducer, Stainless Steel 317L Tee type, Stainless Steel 317L Cross type, Stainless Steel 317L Coupling, Stainless Steel 317L Unions, Stainless Steel 317L Adaptors, Stainless Steel 317L Olet, Stainless Steel 317L Plug, Stainless Steel 317L Cap, etc.

Stainless Steel 317L Pipe Fittings have several applications such as air pollution control, chemical and petrochemical processing, explosives, food and beverages processing, petroleum refining, power generation, pulp and paper industries, etc.

ANSI B16.9 Stainless Steel 317L Buttweld Fittings, SS 317L Pipe Fittings, ASME SA403 WP317L Buttweld Fittings, SS 1.4438 Buttweld Fittings, ASTM A403 WP317L Pipe Fittings, 317L Stainless Steel Pipe Fittings Suppliers, Stainless Steel 317L Pipe Fittings Supplier in India.

Specification For SS 317L Pipe Fittings

SS 317L Pipe Fittings Standard ASTM A403 / ASME SA403
SS 317L Pipe Fitting Dimensions ANSI B16.9, B16.25, B16.28, MSS-SP-43, MSS-SP-48, MSS-SP-59
SS 317L Buttweld Fittings Schedule SCH 5S, 10S, 10, 20, 40S, 40, STD, 60, 80S, 80, XS, 100, 120, 140, 160 & XXS
Stainless Steel 317L Pipe Fittings Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
SS 317L Pipe Fittings Size Range Seamless Butt Weld Fittings : 1/2" - 10"
Welded Fittings : 1/2" - 48"
ASTM A403 WP317L Pipe Fittings Manufacturing process Push, Press, Forge, Cast, etc.
Packing of Products Wooden Pallet, Canton, Carton / Small Box or as required, or as per Customers Requests

Equivalent Grades Of Stainless Steel 317L Pipe Fittings

STANDARD WERKSTOFF NR. UNS JIS EN
SS 317L 1.4438 S31703 SUS 317L X2CrNiMo18-15-4

SS 317L Pipe Fittings Chemical Composition

Grade C Mn Si P S Cr Mo Ni Fe
SS 317L 0.035 max 2.0 max 1.0 max 0.045 max 0.030 max 18.00 – 20.00 3.00 – 4.00 11.00 – 15.00 57.89 min

317L SS Pipe Fittings Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
7.9 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

Ready Stock Of Stainless Steel 317L Pipe Fittings Supplier

  • 317L Stainless Steel LR Elbow
  • Stainless Steel 317L Weldable 1.5D Elbow
  • 317L Stainless Steel 180° LR Return Bend
  • ASTM A403 WP 317L Stainless Steel Lateral Tee
  • 317L Stainless Steel Pipe Fittings
  • SS 317L SR Elbow
  • SS 317L 90° Seamless Elbow
  • SS 317L Buttweld Equal Cross
  • SS 1.4438 Lap joint Stub Ends
  • ASME B16.9 Stainless Steel 317L Pipe Nipple
  • Stainless Steel 317L Reducing Tee
  • SS 1.4438 Short Radius Elbow
  • Stainless Steel 317L Barred Tee
  • SS Gr 317L Industrial Pipe Fittings
  • UNS S31703 Stainless Steel Swage Nipple
  • 317L Stainless Steel Reducing Nipple
  • Type 317L Stainless Steel Seamless Pipe Fittings
  • 317L Stainless Steel End Pipe Cap
  • SS 317L Welded Lateral Tee
  • Stainless Steel S31703 Buttweld Fittings
  • Stainless Steel 317L 10D Elbow

Stainless Steel 317L Pipe Fittings Dimensional Tolerances

(1) Out-of-round is the sum of absolute values of plus and minus tolerance.
(2) The inside diameter at ends and the nominal wall thicknesses are to be specified by the purchaser.
 IN ACCORDANCE WITH ASME B16.9 – B16.28
All Fittings
90°and 45° Ells and Tees Reducers and Lap Joint Stub Caps 180° Returns Angularity Tol
Nominal Pipe Plane Size (NPS) Outside(1) Diameter at Bevel Inside(1) Diameter at End Wall(2) Thickness Centre-to- End Dimension A,B,C,M Overall Length L Overall Length E Centre-to- Centre Dimension O Back-to- Face Dimension K Alignment at Ends U Nominal Pipe SIze Off Angle Q Off Angle P
1/2 TO 2-1/2 +1/16 ±1/32 Not less than 87-1/2% of Normal Thickness ±1/16 ±1/16 ±1/8 ±1/4 ±1/4 ±1/32 12 to 4 1/32 1/16

-1/32






5 to 8 1/16 1/8
3 TO 3-1/2 ±1/16 ±1/16 ±1/16 ±1/16 ±1/8 ±1/4 ±1/4 ±1/32 10 to 12 3/32 3/16
4 ±1/16 ±1/16 ±1/16 ±1/16 ±1/8 ±1/4 ±1/4 ±1/32 14 to 16 3/32 1/4
5 TO 8 +1/32 ±1/16 ±1/16 ±1/16 ±1/4 ±1/4 ±1/4 ±1/32 18 to 24 1/8 3/8

-1/16









10 TO 18 +1/16 ±1/8 ±3/32 ±3/32 ±1/4 ±3/8 ±1/4 ±1/16  All dimensions are in inches

-1/8






20 TO 24 +1/4 ±3/32 ±3/32 ±3/32 ±1/4 ±3/8 ±1/4 ±1/16

-3/32
