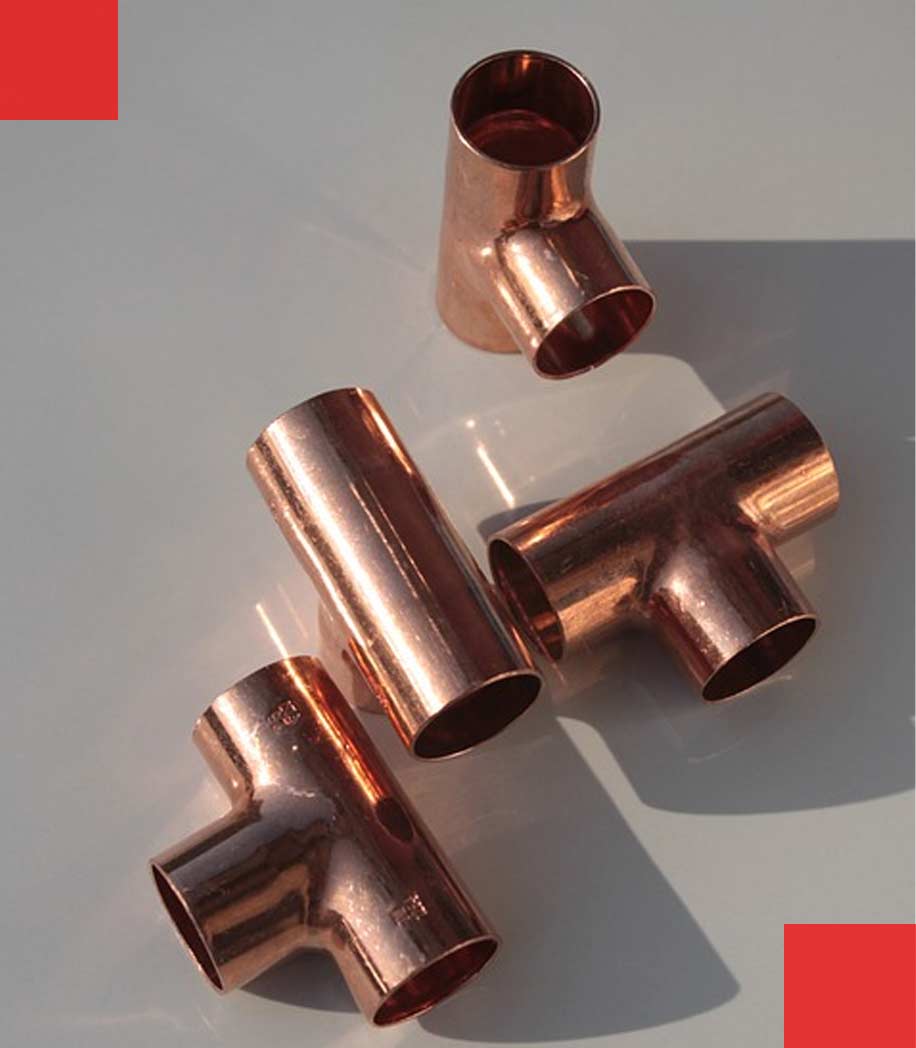

Being pioneers in the industry, Katariya Steel offers a wide array of Copper Nickel 70 / 30 Pipe Fittings to our clients.

Copper Nickel 70 / 30 Pipe Fittings are made up of 70% copper and 30% nickel. It has a high resistance to corrosion, pitting, and erosion. The alloy is strong and has relatively easy workability and weldability. These attributes are possible due to the addition of iron and manganese in the alloy, making it suitable for demanding tasks.

Copper Nickel 70 / 30 Pipe Fittings is widely known for its outstanding corrosion and erosion resistance, particularly in maritime conditions. In higher velocity fluids (up to 4.5m/s) and contaminated saltwater, its corrosion resistance improves. It is also incredibly resistant to stress corrosion cracking and corrosion fatigue, with strong mechanical property retention from sub-zero temperatures to 300°C.

Copper Nickel 70 / 30 Pipe Fittings have intermediate strength levels when annealed, allowing them to be employed in more demanding applications. It also has an innate resistance against biofouling. During the initial period of usage, a protective oxide coating grows naturally over the material, providing an unfriendly surface that discourages marine development.

70 30 Copper Nickel Seamless Fittings Stockist, Copper Nickel 70-30 Pipe Fittings, UNS C71500 Elbow, Cupro Nickel 70 30 Buttweld Fittings, Cu-Ni 70/30 Buttweld Pipe Fittings, Copper Nickel 70/30 Pipe Fittings Manufacturer In Mumbai, India.

Copper Nickel 70 / 30 Pipe Fitting is easily hot and cold worked and reacts well to most fabrication methods. It may also be linked via soldering, brazing, and a variety of welding techniques. With good hot and cold formability and malleability similar to copper, the alloy does not solidify quickly, making it suitable for drawing and spinning.

The alloy is used in activities in the marine sector, such as submarine and seawater pipework, and areas where strong corrosion resistance is required but stainless steels are not employed due to concerns about chloride stress-corrosion cracking. These include industries such as offshore oil and gas, power generation, desalination, and cooling plants.

Katariya Steel Distributors also offer these Cu-Ni 70 / 30 Butt Weld Pipe Fittings in customized sizes and shapes to the clients.

ASTM B122 Copper Nickel 70/30 Fittings, ASME SB122 70/30 CuNi Buttweld Pipe Cross, Cu-Ni 2.0882 Buttweld Reducer, C71500 Cupro Nickel BW Cap, ANSI B16.9 Copper Nickel 70 30 Tee, Copper Nickel 70/30 Pipe Fittings Supplier in India.

Specification For Copper Nickel 70/30 Pipe Fittings

Copper Nickel 70/30 Pipe Fittings Standard	B122, B171, B466, B467
Copper Nickel 70/30 Pipe Fitting Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Copper Nickel 70/30 Pipe Fitting Dimensions Size Range	1/2" to 24" NB to 24″NB in
Copper Nickel 70/30 Pipe Fittings Type	Seamless / Welded / Fabricated
Copper Nickel 70/30 Pipe Fittings Schedule	SCH 30, SCH20, SCH30, SCH40
Grades	Copper Nickel 70/30 (C71500 ), Cupro Nickel 70/30 (C71500), UNS C71640

Equivalent Grades Of Copper Nickel 70/30 Pipe Fittings

STANDARD	WERKSTOFF NR.	UNS
Copper Nickel 70/30	2.0882	C71500

Various Types of Copper Nickel 70/30 Pipe Fittings Manufacturer

Copper Nickel 70/30 Pipe Elbow

C71500 Copper Nickel Seamless Elbow
Copper Nickel 70/30 Seamless Elbows
Cupro Nickel 70/30 Pipe Elbow
CuNi 70/30 70 Deg Butt weld Elbow
ANSI B16.9 Copper Nickel 70/30 Butt weld Elbow
Copper Nickel 2.0882 Butt Weld Elbow
70/30 Copper Nickel Buttweld Elbow
Cupro Nickel 70/30 Buttweld Elbow
Cupro Nickel 70/30 Seamless Elbow
Cupro Nickel 2.0882 Seamless Elbow
UNS C71500 Buttweld Elbows
ASTM B122 CuNi 70/30 Seamless Elbow
Copper Nickel 70/30 Buttweld Elbows
70/30 Cupro Nickel 180 Deg. Elbow
ASME SB122 70/30 Copper Nickel Pipe Elbows

Copper Nickel 70/30 Pipe Tee

Cupro Nickel 70/30 Seamless Tee
70/30 Copper Nickel Buttweld Tee
C71500 Copper Nickel Seamless Tee
70/30 Cupro Nickel Lateral Tee
Cupro Nickel 70/30 Pipe Tee
Copper Nickel 70/30 Seamless Tee
Cupro Nickel 2.0882 Seamless Tee
ASME SB122 70/30 Copper Nickel Pipe Tee
Copper Nickel 70/30 Buttweld Tee
ANSI B16.9 Copper Nickel 70/30 Seamless Tee
Cu-Ni 70/30 Reducing Tees
Copper Nickel 2.0882 Butt Weld Tee
Copper Nickel 2.0882 Welded Tee
Cupro Nickel 70/30 Buttweld Tee
ASTM B122 CuNi 70/30 Pipe Tee

Copper Nickel 70/30 Pipe Cross

Copper Nickel 70/30 Seamless Cross
ANSI B16.9 Copper Nickel 70/30 Butt weld Cross
Copper Nickel 2.0882 Welded Cross
Cupro Nickel 70/30 Buttweld Cross
UNS C71500 Buttweld Cross
Cupro Nickel 70/30 Seamless Cross
70/30 Copper Nickel Buttweld Cross
C71500 Copper Nickel Seamless Cross
Cu-Ni 70/30 Reducing Crosses
70-30 Copper Nickel Equal Crosses
ASME SB122 70/30 Copper Nickel Pipe Cross
Cupro Nickel 70/30 Pipe Cross
Copper Nickel 70/30 Buttweld Cross
Copper Nickel 2.0882 Butt Weld Cross
ASTM B122 CuNi 70/30 Seamless Cross

Copper Nickel 70/30 Reducers

70/30 Copper Nickel Buttweld Reducer
Copper Nickel 70/30 Pipe Reducer
Cupro Nickel 2.0882 Seamless Reducer
UNS C71500 Buttweld Pipe Reducer
Cupro Nickel 70/30 Seamless Reducer
Copper Nickel 2.0882 Butt Weld Reducer
ASME SB122 70/30 Copper Nickel Reducer
Cupro Nickel 70/30 Buttweld Reducer
ASTM B122 CuNi 70/30 Seamless Reducer
Copper Nickel 70/30 Buttweld Reducer
Copper Nickel 70/30 Seamless Reducer
C71500 Copper Nickel Seamless Reducer
Cupro Nickel 70/30 Pipe Reducer
Copper Nickel 2.0882 Welded Reducer
ANSI B16.9 Cu-Ni 70/30 Butt weld Reducer

Copper Nickel 70/30 Pipe Cap

Copper Nickel 70/30 Seamless Pipe Cap
Cupro Nickel 70/30 Buttweld Pipe Cap
Cupro Nickel 70/30 Pipe Cap
Copper Nickel 70/30 Buttweld Pipe Cap
ANSI B16.9 Cu-Ni 70/30 Butt weld Pipe Cap
Cupro Nickel 2.0882 Seamless Pipe Caps
C71500 Copper Seamless Pipe Cap
Cupro Nickel 70/30 Seamless Pipe Cap
ASTM B122 CuNi 70/30 Seamless Pipe Cap
Copper Nickel 2.0882 Butt Weld Pipe Cap
Copper Nickel 2.0882 Welded Pipe Caps
70/30 Copper Nickel Buttweld Pipe Cap
UNS C71500 Buttweld End Cap
ASME SB122 70/30 Copper Nickel Pipe Cap

Copper Nickel 70/30 Stub End

Copper Nickel 70/30 Buttweld Stub End
ASTM B122 CuNi 70/30 Seamless Stub End
C71500 Copper Seamless Stub End
Copper Nickel 2.0882 Welded Stub End
UNS C71500 Buttweld Stub End
Cupro Nickel 70/30 Seamless Stub End
Cupro Nickel 70/30 Buttweld Stub End
70/30 Copper Nickel Short Stub End
ANSI B16.9 Cu-Ni 70/30 Butt weld Stub End
Copper Nickel 70/30 Seamless Stub End
ASME SB122 70/30 Copper Nickel Stub End
Cupro Nickel 2.0882 Seamless Stub Ends
Copper Nickel 2.0882 Butt Weld Stub End
Cupro Nickel 70/30 Stub End

Copper Nickel 70/30 Pipe Fittings Chemical Composition

Grade	Cu	Pb	Fe	Zn	Ni	Mn
Copper Nickel 70/30	65.0 min	.05 max	0.4-1.0	1 max	29-33	1 max

Copper Nickel 70/30 Pipe Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
0.323 lb/in3 at 68 F	2260 F	50000 psi	20000 psi	30 %

Ready Stock Of Copper Nickel 70/30 Pipe Fittings Supplier

Copper Nickel 2.0882 Lap joint Stub Ends
Copper Nickel 70/30 SR Elbow
Cupro Nickel 70/30 Pipe Fittings
Cu Ni 70/30 Pipe Fittings
70/30 Copper Nickel Pipe Fittings
Cupro Nickel 70/30 180° LR Return Bend
Copper Nickel 70/30 Weldable 1.5D Elbow
ASME B16.9 Copper Nickel 70/30 Pipe Nipple
ASTM B122 Copper Nickel 70/30 Lateral Tee
Copper Nickel 70/30 30D Elbow
Cu-Ni 70/30 70° Seamless Elbow
Copper Nickel 70/30 Eccentric Reducer
Cupro Nickel 70-30 Buttweld Equal Cross

Cupro Nickel 70/30 LR Elbow
Copper Nickel 2.0882 Short Radius Elbow
C71500 Copper Nickel Buttweld Fittings
Copper Nickel 70/30 Barred Tee
Copper Nickel 70/30 Reducing Tee
CuNi 70/30 Pipe Fittings
Cupro Nickel 70/30 End Pipe Cap
70-30 Copper Nickel Pipe Fittings
Type Cupro Nickel 70/30 Seamless Pipe Fittings
70/30 Cupro Nickel Industrial Pipe Fittings
Copper Nickel 70/30 Reducing Nipple
Cupro Nickel 70/30 Swage Nipple
CuNi 70/30 Welded Lateral Tee

Copper Nickel 70/30 Pipe Fittings Dimensional Tolerances

**⁽¹⁾ Out-of-round is the sum of absolute values of plus and minus tolerance.**

⁽²⁾ The inside diameter at ends and the nominal wall thicknesses are to be specified by the purchaser.

**IN ACCORDANCE WITH ASME B16.9 – B16.28**
All Fittings				90°and 45° Ells and Tees	Reducers and Lap Joint Stub	Caps	180° Returns			Angularity Tol
Nominal Pipe Plane Size (NPS)	Outside⁽¹⁾ Diameter at Bevel	Inside⁽¹⁾ Diameter at End	Wall⁽²⁾ Thickness	Centre-to- End Dimension A,B,C,M	Overall Length L	Overall Length E	Centre-to- Centre Dimension O	Back-to- Face Dimension K	Alignment at Ends U	Nominal Pipe SIze	Off Angle Q	Off Angle P
1/2 TO 2-1/2	+1/16	±1/32	Not less than 87-1/2% of Normal Thickness	±1/16	±1/16	±1/8	±1/4	±1/4	±1/32	12 to 4	1/32	1/16
	-1/32									5 to 8	1/16	1/8
3 TO 3-1/2	±1/16	±1/16		±1/16	±1/16	±1/8	±1/4	±1/4	±1/32	10 to 12	3/32	3/16
4	±1/16	±1/16		±1/16	±1/16	±1/8	±1/4	±1/4	±1/32	14 to 16	3/32	1/4
5 TO 8	+1/32	±1/16		±1/16	±1/16	±1/4	±1/4	±1/4	±1/32	18 to 24	1/8	3/8
	-1/16
10 TO 18	+1/16	±1/8		±3/32	±3/32	±1/4	±3/8	±1/4	±1/16	All dimensions are in inches
	-1/8
20 TO 24	+1/4	±3/32		±3/32	±3/32	±1/4	±3/8	±1/4	±1/16
	-3/32
