Stainless Steel Flanges In Iraq

  • Home
  • Stainless Steel

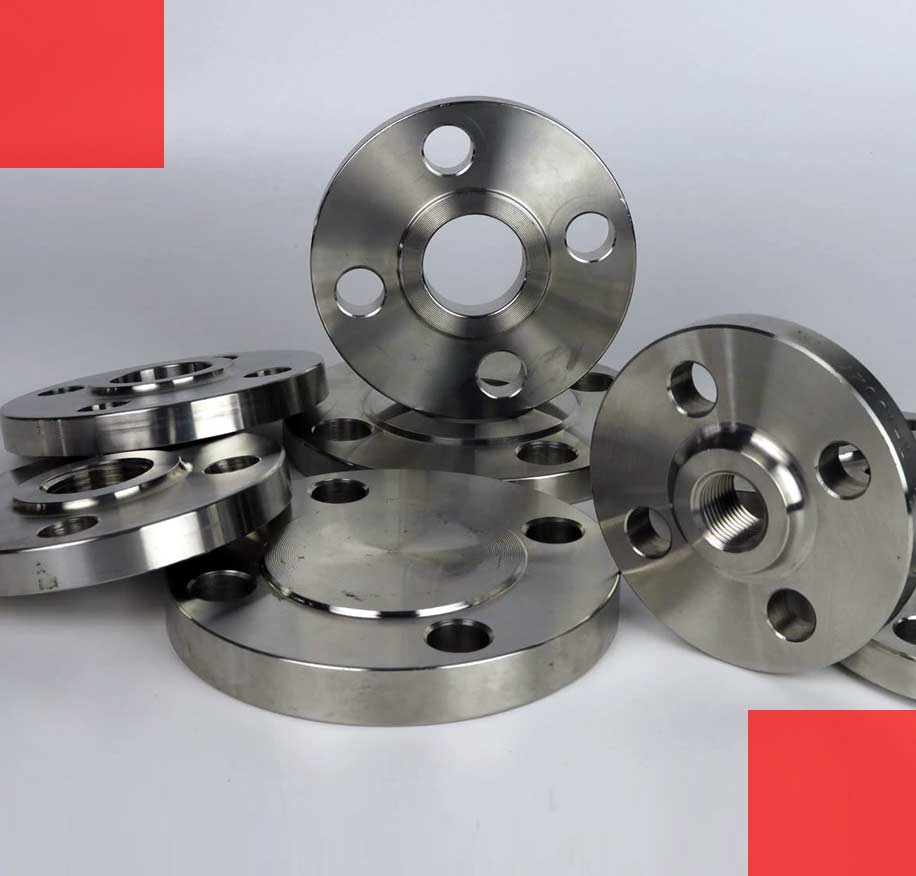

Katariya Steel is a prominent supplier and stockist of Stainless Steel Flanges in Iraq. Our SS flanges are manufactured by adhering, to national, and international quality standards. Stainless Steel Flanges are available in a variety of sizes, shapes, and materials to suit the specific needs of any application. The most common types include slip-on, welded neck, socket welding, lap joint, and threaded flanges. The most common stainless steel alloys used in Stainless Steel Flanges are 304L, 316L, 321, 347, 410, and 904L. The corrosion resistance of these alloy grades depends on their chromium content. The higher the chromium content of the alloy, the better its corrosion resistance will be.

Stainless Steel Flanges are ideal for use in Iraq due to their excellent corrosion resistance and strength-to-weight ratio. Stainless steel flanges are commonly used in applications such as water piping, automotive exhaust systems, and in food service. They can also be found in many industrial settings where chemical processing is taking place.

SS 304 Flanges In Iraq, Stainless Steel Flanges In Mosul, ASME SA182 SS 304L Forged Flanges Supplier In Baghdad, SS 1.4301 Flat Face Flanges In Erbil, Stainless Steel Raised Face Flange In Basra, Stainless Steel 316 Pipe Flanges In Basrah, ANSI B16.5 Stainless Steel Flanges In Iraq, Stainless Steel UNS S31603 Plate Flange In Baghdad, Stainless Steel Industrial Flanges Manufacturer In Erbil, Iraq.

In addition to meeting specific requirements related to strength, pressure, or temperature range, stainless steel can also offer important advantages such as fire safety due to its low thermal conductivity, and low maintenance costs due to its corrosion resistance. With these properties in mind, Stainless Steel Flanges are well-suited for use in many industries such as chemical processing, pharmaceuticals, food service, water piping, automotive exhaust systems, and more.

Stainless Steel Flanges also offer excellent flexibility for designers since they can be easily customized to meet different needs. Whether you need a specific size or material to fit your application or you have special requirements related to pressure or temperature range, we can help you create precisely what you need.

SS Reducing Flanges In Iraq, ASTM A182 Stainless Steel 317 Forged Flanges In Baghdad, ASME B16.36 SS Orifice Flange Dimensions In Baghdad, SS 1.4541 Spectacle Blind Flanges In Erbil, Stainless Steel S34700 Long Weld Neck Flange Manufacturers In Mosul, SS Socket Weld (SWRF) Flanges In Iraq, Stainless Steel Flanges Stockist In Basra, Stainless Steel 446 WNRF Flange Exporter In Basrah, Grade 904L SS Ring Type Joint (RTJ) Flange Manufacturer In Iraq, ASME SA182 Stainless Steel Screwed / Threaded Flanges Supplier In Basra

Specification For SS Flanges In Basrah

Specifications ASTM A182 / ASME SA182
Dimensions ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size 1/2" (15 NB) to 48" (1200NB)
Class / Pressure 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Ready Stock Of Stainless Steel Flanges Supplier In Iraq

  • Stainless Steel 1.4301 Flat Face Flanges In Iraq
  • Stainless Steel 300 LBS Flanges Manufacturers In Basrah
  • Stainless Steel 304L Lapped Joint Flanges In Mosul
  • SS 310 1500 LBS Screwed Flanges In Baghdad
  • Stainless Steel S31008 RTJ Flanges In Erbil
  • Stainless Steel Spectacle Blind Flanges In Basra
  • SS UNS S30400 Flanges Stockist In Mosul
  • 316 Stainless Steel 150 LBS Threaded Flanges In Iraq
  • Weight Chart of Stainless Steel Flanges In Basrah
  • ASTM A182 Stainless Steel S31603 Flange In Baghdad
  • ASME / ANSI B16.5 SS Flanges Supplier In Mosul
  • SS 316Ti Forged Flanges Dealer In Basra
  • Stainless Steel Male & Female Flanges In Erbil
  • Stainless Steel S31700 Flanges Supplier In Iraq
  • Stainless Steel Flanges Dimensions In Mosul
  • SS 317L Flanges Stockist In Baghdad
  • SS Spades Ring Spacers Flanges Manufacturer In Basra
  • ASME B16.5 Stainless Steel Flanges In Iraq
  • Stainless Steel 321 Flanges at Best Price In Erbil
  • Stainless Steel Expander Flanges Supplier In Baghdad
  • Stainless Steel BS Standard Table E In Basrah
  • SS S34700 Orifice Flange Supplier In Basra
  • Stainless Steel 347H Flanges Exporter In Iraq
  • SS EN Flanges at Best Price In Basrah
  • SS S44600 Nipo Flanges In Mosul
  • Stainless Steel 904L High Hub Blind Flanges In Baghdad
  • Stainless Steel DIN Flanges Wholesaler In Erbil
  • Stainless Steel 304 Loose Flanges In Basra
  • Stainless Steel Forged Flanges Suppliers In Basrah
  • SS 1.4307 NPT Thread Flanges In Baghdad
  • SS S31000 ANSI Flanges Dealer In Mosul
  • Stainless Long Welding Neck Flange In Basra
  • Suppliers of Stainless Steel Flanges IN Iraq
  • SS 310S Industrial Lap Joint Flanges In Erbil
  • Stainless Steel Gr.316 Flanges Dealer In Baghdad
  • SS Groove Flanges Manufacturer In Basra
  • Stainless Steel BSP Thread Flange In Basrah
  • Type Stainless Steel Threaded Flange IN Iraq
  • Stainless Steel S31603 Plate Flanges Dealer In Erbil
  • SS British Standard Table D Pipe Flanges In Basrah
  • Stainless Steel 316Ti Spades Ring Spacers Flanges In Baghdad
  • Grades 317 Stainless Steel Flanges In Erbil
  • SS S32100 Tongue Flanges Exporter In Basra
  • Stainless Steel Pipe Flanges Stockist In Mosul
  • Stainless Steel 347 Weldo Flanges In Iraq

Stainless Steel Flanges Weight Chart In Iraq

15mm (1/2″) Stainless Steel Flanges Weight Chart

Pipe Normal Diam.
O.D. Flange
Thk. Of Flange Min
Diam.
of
Hub
Diameter of Raised Face
Length Hub.Y
Thread Length
Diam.
of Bolt
Circle
Diam.
of Bolt
Holes
Number
of Bolts
Diam. of
Bolts
(inch)
KG
LB
inch
dn
O
C
X
G
Y
T
BC
BH
BN
BD
1/2″
15
89.00
11.20
30.20
35.10
15.70
15.70
60.50
15.80
4
1/2″
0.4
0.9
3/4″
20
98.50
12.70
38.10
42.90
15.70
15.70
69.90
15.80
4
1/2″
0.7
1.5
1″
25
108.00
14.20
49.30
50.80
17.50
17.50
79.30
15.80
4
1/2″
0.8
1.8
1-1/4″
32
117.50
15.70
58.70
63.50
20.60
20.60
88.90
15.80
4
1/2″
1.2
2.6
1-1/2″
40
127.00
17.50
65.00
73.20
22.40
22.40
98.60
15.80
4
1/2″
1.5
3.3
2″
50
152.50
19.10
77.70
91.90
25.40
25.40
120.70
19.10
4
5/8″
2.3
5.1
2-1/2″
65
178.00
22.40
90.40
104.60
28.40
28.40
139.70
19.10
4
5/8″
3.7
8.1
3″
80
190.50
23.90
108.00
127.00
30.20
30.20
152.40
19.10
4
5/8″
4.1
9
3-1/2″
90
216.00
23.90
122.20
139.70
31.80
31.80
177.80
19.10
8
5/8″
5.1
11.2
4″
100
228.50
23.90
134.90
157.20
33.30
33.30
190.50
19.10
8
5/8″
5.9
13
5″
125
254.00
23.90
163.60
185.70
36.60
36.60
215.90
22.40
8
3/4″
7
15.4
6″
150
279.50
25.40
192.00
215.90
39.60
39.60
241.30
22.40
8
3/4″
8.4
18.5
8″
200
343.00
28.40
246.10
269.70
44.50
44.50
298.50
22.40
8
3/4″
13
28.6
10″
250
406.50
30.20
304.80
323.90
49.30
49.30
362.00
25.40
12
7/8″
18
39.5
12″
300
482.50
31.80
365.30
381.00
55.60
55.60
431.80
25.40
12
7/8″
29
64
14″
350
533.50
35.10
400.10
412.80
57.20
57.20
476.30
28.50
12
1″
39
86
16″
400
597.00
36.60
457.20
469.90
63.50
63.50
539.80
28.50
16
1″
47
103
18″
450
635.00
39.60
505.00
533.40
68.30
68.30
577.90
31.80
16
1 1/8″
57
126
20″
500
698.50
42.90
558.80
584.20
73.20
73.20
635.00
31.80
20
1 1/8″
76
167
24″
600
813.00
47.80
663.40
692.20
82.60
82.60
749.30
35.10
20
1 1/4″
97
214

Stainless Steel Pipe Flange Dimensions In Iraq

AMERICAN SOCIETY OF MECHANICAL ENGINEERS (ASME)
  • ASME B1.20.1, Pipe Threads, General Purpose
  • ASME B16.1, Cast Iron Pipe Flanges Classes 25, 125 and 250
  • ASME B16.5, Flanges NPS 1/2 Through NPS 24
  • ASME B16.11, Forged Fittings, Socket Welding and Threaded
  • ASME B16.25, Buttwelding Ends
  • ASME B16.36, Orifice Flanges
  • ASME B16.47, Large Diameter Steel Flanges NPS 26 Through NPS 60
  • ASME B31.1, Power Piping
  • ASME B31.3, Process Piping
  • ASME B46.1, Surface Texture (Surface Roughness, Waviness, and Lay)

Stainless Steel Flanges Pressure Rating In Basrah

ANSI/ASME B16.34 PRESSURE RATING CHART
Temperature °F 150# 300# 400# 600# 900# 1500# 2500#
-20 to 100 275 720 960 1440 2160 3600 6000
200 230 600 800 1200 1800 3000 5000
300 205 540 720 1080 1620 2700 4500
400 190 495 660 995 1490 2485 4140
500 170 465 620 930 1395 2330 3880
600 140 435 580 875 1310 2185 3640
650 125 430 575 860 1290 2150 3580
700 110 425 565 850 1275 2125 3540
750 95 415 555 830 1245 2075 3460
800 80 405 540 805 1210 2015 3360
850 65 395 530 790 1190 1980 3300
900 50 390 520 780 1165 1945 3240
950 35 380 510 765 1145 1910 3180
1000 20 320 430 640 965 1605 2675
1050 20 310 410 615 925 1545 2570
1100 20 255 345 515 770 1285 2145
1150 20 200 265 400 595 995 1655
1200 20 155 205 310 465 770 1285
1250 20 115 150 225 340 565 945
1300 20 85 115 170 255 430 715
1350 20 60 80 125 185 310 515
1400 20 50 65 95 145 240 400
1450 15 35 45 70 105 170 285
1500 10 25 35 55 80 135 230
